POST INDICATOR & VALVE
PIV is the indicator-type control valve installed on the underground firefighting water pipe, and the post has a window to easily verify the OPEN / CLOSE state of the valve. Field installation is very simple and economic.
Lever-type, Gear-type and Hatch-type of valves are available.
POST INDICATOR
|
LEVER TYPE POST (SL-701L) Application : Valve 4” ~ 24” Length : Order specified Material : Cast Iron & Carbon Steel Option : Tamper switch, KFI certified |

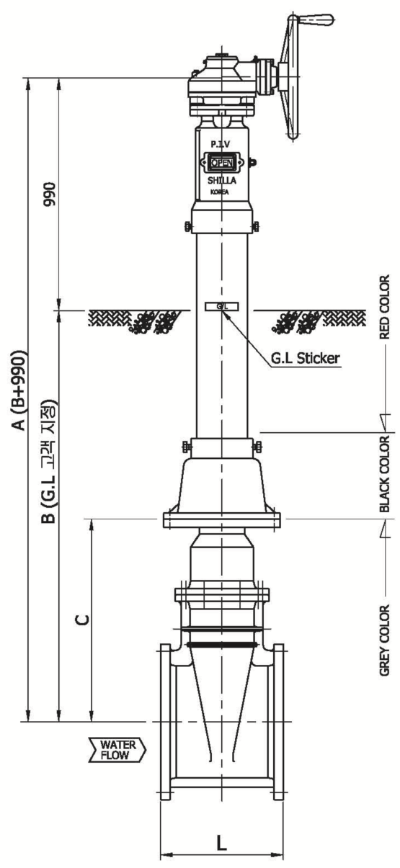

GEAR TYPE POST (SL-701G) Application : Valve 4” ~ 24” Length : Order specified Material : Cast Iron & Carbon Steel Option : Tamper switch, KFI certified. |
HATCH TYPE POST (SL-701H) Application : Valve 4” ~ 14” Length : Order specified Material : Cast Iron & Carbon Steel Option : Tamper switch |
GATE VALVE (SL-701V)
The main body of the valve for Post Indicator is in ductile material to have the inside and outside with epoxy resin powder coating to have excellent body strength and corrosion-resistance. The Disk is in ductile material with frontal rubber lining forming to be applied with two-way sealing function for excellent corrosion-resistance and prevention of leakage.
 |
Size : 4” ~ 24” ANSI #150 F.F FLANGE Type : Non-Rising Type Material : Body – Ductile iron (GCD 450) Painting : Epoxy Resin Powder (in/out side) Test Pressure : 4” ~ 12” — 2.4MPa(Body) Option : Cast Steel Valve |
 |
POST & VALVE Assembly Method 1. Check whether the valve disk is completely open. 2. The square wrench part on the top of the post is turned counter-clockwise to check whether the open indication 3. The square wrench on the bottom of the post is inserted into the upper part of the axis on the valve, and the flange hole of the post and the Bolt Hole of the valve base are matched to be fastened with the Bolt. * POST is basically separated with the VALVE for supply. TAMPER SWITCH mount-type is completely opened with the valve, and the Switch is open contact state to be supplied. |
