Fire fighting products, Nozzle, Monitor, Valve, Connector, Fire hydrant and more

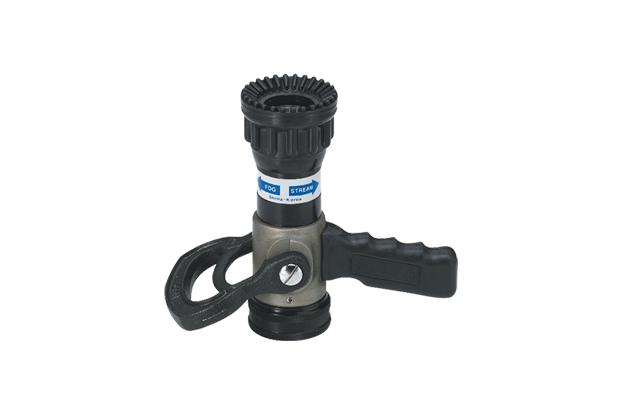

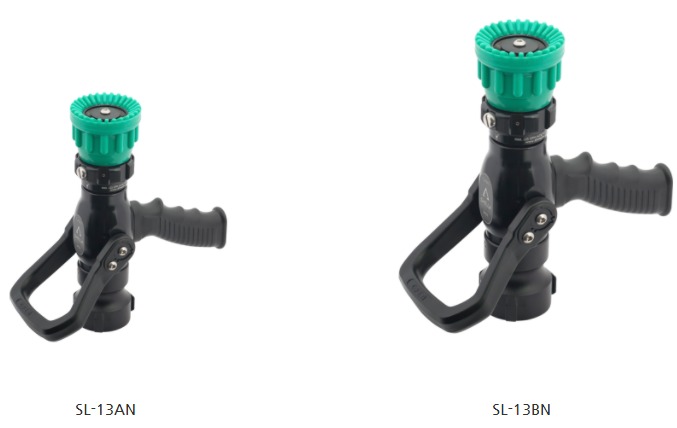

PISTOL GRIP NOZZLE (Fire Hose Control Type)
These nozzles are leading the trend in the fire service for many years to utilize greater water flows for initial attack.
Ball valve makes easy open and shut-off. Swivel inlet prevents twisting of fire hose connected. Pistol grip enables stable posture during fire operation.
Far reach straight stream flow performs effective fire operation without wasting of fire water.
Flow rate maintains same both fog and straight stream pattern. Nightglow bumper is available as an option.
The filter equipped inside can collect impurities.
| Model | Size | Flow Rate (@0.7MPa) |
L (mm) |
W (kg) |
Meterial |
|---|---|---|---|---|---|
| SL-13AN | FE40 (1-1/2”) | 480 LPM | 250 | 1.4 | Aluminum |
| SL-13BN | FE65 (2-1/2”) | 946 LPM | 285 | 2.3 | Aluminum |

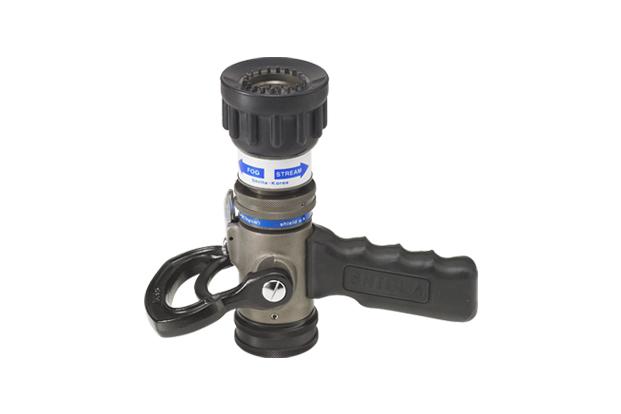

PISTOL GRIP NOZZLE (Selectable Flow Rate Type)
These nozzles are leading the trend in the fire service for many years to utilize greater water flows for initial attack. Ball valve makes easy open, shut-off. Swivel inlet prevents twisting of fire hose connected.
Pistol grip enables stable posture during fire operation.
Water flow rate can be adjusted 4 steps but remains the same flow both fog and straight stream water pattern.
Far reach straight stream flow performs effective fire operation without wasting of fire water. Spinning teeth makes fine water curtain for more effective fire operation.
| Model | Size | Flow Rate (@0.7MPa) |
L (mm) |
W (kg) |
Meterial | Remarks |
|---|---|---|---|---|---|---|
| SL-12BP-25 | FE25 (1”) | 76-152-190-230 LPM |
290 | 1.7 | Aluminum | |
| SL-12DBS | FE40 (1-1/2”) | 115-230-360-480 LPM |
290 | 1.8 | Spinning Teeth |
|
| SL-12BPS | FE65 (2-1/2”) | 380-570-760-950 LPM |
320 | 2.8 | Spinning Teeth |
* NH, BSP, BS336, MACHINO, STORZ, GOST connection available * BUMPER : Standard – Black, Fluorescent Bumper available (White, Green, Yellow)
PISTOL GRIP NOZZLE (General Type)
Usually used for fire trucks or industrial complex. Ball valve makes easy open, shut-off. Easy to handle by light weight aluminum alloy. Pistol grip enables stable posture during fire operation.
| Model | Size | Flow Rate (@0.7MPa) |
L (mm) |
W (kg) |
Meterial |
|---|---|---|---|---|---|
| SL-13SP | FE40 (1-1/2”) | 490 LPM | 195 | 1.4 | Aluminum |
| SL-13BP | FE65 (2-1/2”) | 945 LPM | 310 | 2.8 | Aluminum |
| SL-13SPQ | Machino 40 (1-1/2”) | 490 LPM | 195 | 1.4 | Aluminum |
| SL-13BPQ | Machino 65 (2-1/2”) | 945 LPM | 310 | 2.9 | Aluminum |
PISTOL GRIP NOZZLE (Spinning Teeth Type)
These nozzles are effectively used for most of fire operation. Ball valve makes easy open and shut-off. Swivel inlet prevents twisting of fire hose connected. Pistol grip enables stable posture during fire operation. Water flow rate can be adjusted 4 steps but remains same flow both fog and straight stream water pattern. The function of spinning teeth makes fine water curtain for more effective fire operation.
| Model | Size | Flow Rate (@0.7MPa) |
L (mm) |
W (kg) |
Meterial | Remarks |
|---|---|---|---|---|---|---|
| SL-13DBS | FE40 (1-1/2”) | 150-225-360-470 LPM |
210 | 1.6 | Aluminum | Spinning Teeth |
| SL-13BPS | FE65 (2-1/2”) | 470-660-755-935 LPM |
320 | 3.0 | Aluminum | Spinning Teeth |
| SL-13DBSQ | Machino 40 (1-1/2”) | 150-225-360-470 LPM |
210 | 1.7 | Aluminum | Spinning Teeth |
| SL-13BPSQ | Machino 65 (2-1/2”) | 470-660-755-935 LPM |
320 | 3.1 | Aluminum | Spinning Teeth |
PISTOL GRIP NOZZLE (Marine Type)
Specially made for marine firefighting purpose. The material is plated with Ni-cr for anti-corrosion. Pistol grip enables stable posture during fire operation.
| Model | Size | Flow Rate (@0.7MPa) |
L (mm) |
W (kg) |
Meterial | Remarks |
|---|---|---|---|---|---|---|
| SL-13DB-B | FE40 (1-1/2”) | 150-225-360-470 LPM |
205 | 4.7 | Bronze | Ni-Cr. Plated |
| SL-13SP-B | FE40 (1-1/2”) | 490 LPM | 190 | 3.3 | Bronze | Ni-Cr. Plated |
| SL-13BP-B | FE65 (1-1/2”) | 640-945 LPM | 270 | 5.6 | Bronze | Ni-Cr. Plated |
* NPSH, NH, STORZ, NAKAJIMA, GOST connection available
VALVE TYPE NOZZLE
Usually used for fire trucks or industrial complex. Ball valve makes easy open and shut-off. Esay to handle by light weight aluminum alloy anti-corrosion.
| Model | Size | Flow Rate (@0.7MPa) |
L (mm) |
W (kg) |
Meterial | Remarks |
|---|---|---|---|---|---|---|
| SL-14S | FE40 (1-1/2”) | 490 LPM | 195 | 1.1 | Aluminum | Anodizing Coating |
| SL-14SQ | Machino 40 (1-1/2”) | 490 LPM | 195 | 1.2 | Aluminum | Anodizing Coating |
| SL-15B | FE65 (2-1/2”) | 945 LPM | 265 | 2.1 | Aluminum | Anodizing Coating |
| SL-15BQ | Machino 65 (2-1/2”) | 945 LPM | 265 | 2.3 | Aluminum | Anodizing Coating |
* NH, BSP, BS336, STORZ, GOST connection available.
* Bronze material available.
