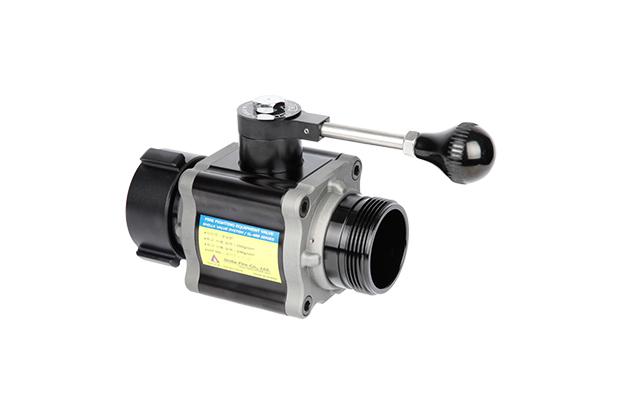

BALL VALVE for Hydrant
The supply valve is attached to the hydrant or firefighting water line for use on the fire hose.
Easy and quick Open/Close operation. There is no damage from foreign substances, and the valve shows excellent sealing effect even in poor environment. Drain valve can be mounted on the bottom to prevent damage from freezing.
| Model | Inlet Size | Outlet Size | Remarks |
|---|---|---|---|
| SL-41F-A | NH2-1/2” (Female) | NH2-1/2” (Male) |
•Test Pressure : 2MPa
•Finishing : Red or Yellow •Material : Aluminum (option-Bronze, Ductile) |
| SL-41Q-A | NH2-1/2” (Female)(Female) | Machino Quick2-1/2” (Male) | |
| SL-41FH-A | 2-1/2” FLG for hydrant | NH2-1/2” (Male) | |
| SL-41FQ-A | 2-1/2” FLG for hydrant | Machino Quick2-1/2” (Male) | |
| SL-48A-A | FLG 2-1/2”, 3” | NH2-1/2” (Male) | |
| SL-48MC-A | FLG 2-1⁄2”, 3″ | Machino Quick2-1/2” (Male) |
* Connector : BSQ , STORZ, NAKAJIMA, GOST
| Model | Inlet Size | Outlet Size | Remarks |
|---|---|---|---|
| SL-41F | NH2-1/2” (Female) | NH2-1/2” (Male) |
•Test Pressure : 2MPa
•Finishing : Red or Yellow •Material Body : Cast Iron or Bronze Connector : AL or Bronze |
| SL-41Q | NH2-1/2” (Female) | Machino Quick2-1/2” (Male) | |
| SL-41FH | 2-1/2” FLG for hydrant | NH2-1/2” (Male) | |
| SL-41FQ | 2-1/2” FLG for hydrant | Machino Quick2-1/2” (Male) | |
| SL-48A | FLG 2-1⁄2”, 3″ | NH2-1/2” (Male) | |
| SL-48MC | FLG 2-1⁄2”, 3″ | Machino Quick2-1/2” (Male) |
 |

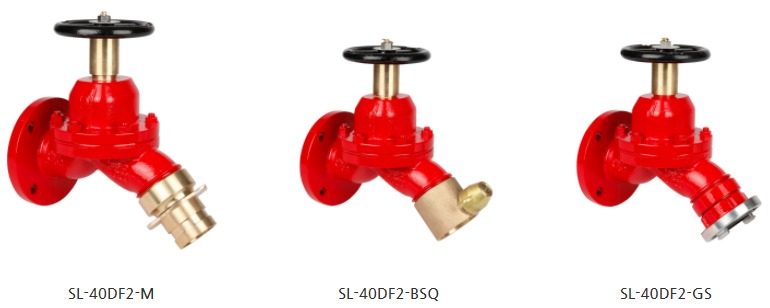

The diaphragm valve was designed exclusively for hydrants, and maximum water flow can be discharged on any conditions. The rubber seat enables complete blockage to prevent any damages from foreign substances. The bronze body with excellent corrosion-resistance and EPDM material on diaphragm seat are applied. The product can be used for industrial or marine use, and the basic specification is screw-type coupling, but various types of couplings such as Machino Quick, BS Quick and Storz also are possible. FE65(F) * FE65(M) ㆍInlet : FLANGE 2-1/2″, 3″ ㆍOutlet : NH(M), Machino Quick, BS Quick, Storz ㆍMaterial : Bronze & EPDM Rubber ㆍWorking Pressure : 1.6MPa ㆍRemark : Application for firefighting such as hydrant. |
|
ㆍInlet : FLANGE 2-1/2″, 3″ ㆍOutlet : FE, NH, BSP, Machino Quick, ㆍMaterial : Bronze & EPDM Rubber ㆍWorking Pressure : 1.6MPa ㆍRemark : Application for firefighting such as hydrant. |
 |
GLOBE VALVE for Hydrant
The valve is mounted on the hydrant to use fire hose, and the flow rate can be controlled conveniently. The advantage of the valve is enabling constant discharge pressure for safe use.
| Model | Inlet Size | Remarks |
|---|---|---|
| SL-40G | NH 2-1/2’’(F) * NH2-1/2”(M) |
•Test Pressure : 2MPa
•Finishing : Red or Yellow •Material : Bronze |
| SL-40GF | FLG 2-1/2” * NH 2-1/2’’(M) for hydrant | |
| SL-40GF-2 | ANSI #150 2-1/2″ * NH 2-1/2″(M) | |
| SL-40GQ | NH 2-1/2″(F) * MACHINO 65(M) |
GATE VALVE for Hydrant
The valve is installed on the fire water line such as hydrants to be connected with fire hose for use. There is no pressure loss and easy to use.
Various materials and connections are provided to enable to use according to the site conditions.
| Model | Inlet Size | Outlet Size | Material | Remarks |
|---|---|---|---|---|
| SL-40F | NH2-1/2” (Female) | NH2-1/2” (Male) | •Body : Aluminum / Bronze / Cast Iron •Connector : Bronze / Aluminum |
•Test Pressure : 2MPa •Finishing : Red or Yellow |
| SL-40Q | NH2-1/2” (Female) | Machino Quick2-1/2” (Male) | ||
| SL-40FH | 2-1/2” FLG for hydrant | NH2-1/2” (Male) | ||
| SL-40FQ | 2-1/2” FLG for hydrant | Machino Quick2-1/2” (Male) | ||
| SL-40FM | FLG 2-1⁄2”, 3″ | NH2-1/2”(M) / MQ2-1/2”(Male) | ||
| SL-40GN | For Hydrant, FLG 4” | NH4”, NH4-1/2” (Male) | Ductile & Bronze or AL |
GATE VALVE (UL LISTED)
The product is UL listed. Manufactured in bronze for excellent corrosion-resistance. The hose connector is NH thread.
| Model | Inlet Size | Outlet Size | Material | Weight(kg) | Remarks |
|---|---|---|---|---|---|
| SL-40F | NH2-1/2”(Female) | NH2-1/2”(Male) | Bronze | 8.2 | •Test Pressure : 4MPa •Option : Cap&Chain UL Listed |
| SL-40Q | FLG2-1/2” for hydrant | NH2-1/2”(Male) | 9.8 |
 |

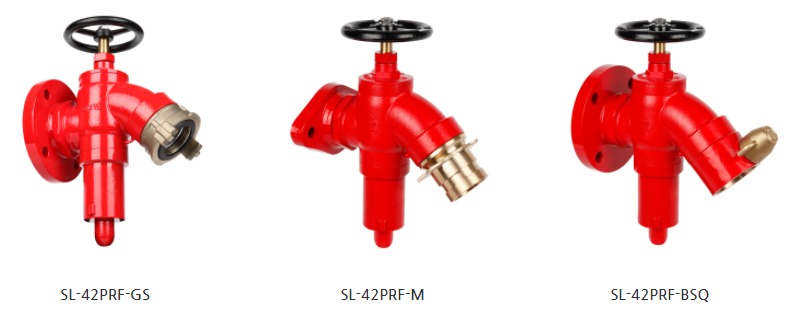

The pressure control valve is attached to the firefighting water supply line such as the hydrant. The irregular discharge pressure occurred due to various conditions in the fire site is controlled constantly under the set pressure to prevent any safety accidents from high pressure or irregular discharge pressure. FE65(F) * FE65(M) Size : Inlet-NH/PT&NPT/NH/BSP 2-1/2” FLANGE Outlet – NH / MACHINO / BSQ / STORZ Material : Bronze Working Pressure : Inlet : MAX. 2.1MPa Outlet : 0.35 ~ 0.8MPa (Basic Setting : 0.7MPa) |
 |
The landing valve is mounted on the indoor & outdoor hydrant. The discharge is designed to be the bending direction of the hose to maintain the smooth flow of the firefighting water. The Open/Close operation is convenient, and the material is in bronze for land and marine. FE65(F) * FE65(M) Size : Inlet-NH/PT&NPT/NH/BSP 2-1/2” FLANGE Outlet-NH/NH/BSP/BSQ /STORZ MACHINO / GOST Material : Bronze Working Pressure : MAX 1.5MPa |
INDOOR HYDRANT VALVE (Valve for Indoor Hydrant)
The valve is for Indoor Hydrant Box that is installed in building. The reducing valve controls the pressure from the high water pressure to normal pressure for effective firefighting operation.
| Model | Size | Material | Test Pressure |
Remarks |
|---|---|---|---|---|
| SL-39 | PT1-1/2”(F) * NH1-1/2”(M) | Bronze | 2MPa | |
| SL-39A | PT2-1/2”(F) * NH2-1/2”(M) | |||
| SL-39P | NH1-1/2”(F) * NH1-1/2”(M) | Bronze & Aluminum |
1.5MPa ->0.7MPa |
|
| SL-39PA | NH2-1/2”(F) * NH2-1/2”(M) | |||
| Auto Drip Valve | PT 3⁄4” | Brass |
