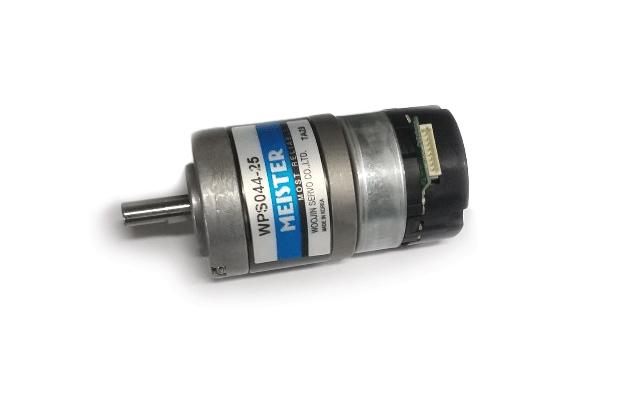

Planetary Geared Motor (WPS-Series)
Model Name
WPS044_NIDEC24H
Data
-
Manufacturer information
WOOJIN SERVO
Small precision motor manufacturer, Induction motor, Speed control, Geared motor
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOOJIN SERVO
Brand
-
SKU
136823
Product Name
Planetary Geared Motor (WPS-Series)
Model Name
WPS044_NIDEC24H
Size
-
Weight
-
Product Details
Product Kinds
Reduction Ratio: 1/5 - 1/1125
Rated Torque: 1.0 - 30.0(kg/cm)
Rated Speed: 3.7 - 840(rpm)
■ GEARED MOTOR SPECIFICATION
| DATA | Length (L) | Gear Ratio | Rated Torque | Rated Speed |
|---|---|---|---|---|
| Unit | [mm] | [ - ] | [kg-cm] | [rpm] |
| 1-Stage | 33 | 1/5 | 1.0 | 840.0 |
| 2-Stage | 42 | 1/15 | 2.4 | 280.0 |
| 1/25 | 4.0 | 168.0 | ||
| 1/35 | 5.6 | 120.0 | ||
| 1/42 | 9.0 | 93.3 | ||
| 3-Stage | 51 | 1/45 | 7.2 | 93.3 |
| 1/75 | 9.6 | 56.0 | ||
| 1/105 | 13.4 | 40.0 | ||
| 1/125 | 16.0 | 33.6 | ||
| 1/135 | 17.3 | 31.1 | ||
| 1/175 | 22.4 | 24.0 | ||
| 1/225 | 28.8 | 18.7 | ||
| 4-Stage | 60 | 1/315 | 30.0 | 13.3 |
| 1/375 | 30.0 | 11.2 | ||
| 1/405 | 30.0 | 10.4 | ||
| 1/525 | 30.0 | 8.0 | ||
| 1/625 | 30.0 | 6.7 | ||
| 1/675 | 30.0 | 6.2 | ||
| 1/875 | 30.0 | 4.8 | ||
| 1/1125 | 30.0 | 3.7 |
■ MOTOR SPECIFICATION
| Model | Nidec CMC_24H series |
|---|---|
| Voltage | DC 24V |
| Rated Speed | 4200 rpm |
| Rated Current | 0.7 A |
| Rated Torque | 0.25 kg-cm |
