■ PERFORMANCE DATA (DUTY : CONTINUOUS)
| Motor Type | Output (W) |
Voltage (V) |
Freq. (Hz) |
Rating | Starting | Condenser | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Input (W) |
Current (A) |
Torque (kgf·cm) |
Speed (rpm) |
Torque (kgf·cm) |
(V) | (㎌) | ||||
| IH9PF40-10 | 40 | 1ø100 | 50 | 80 | 1.00 | 3.12 | 1250 | 2.30 | 250 | 10.0 |
| 60 | 80 | 1.00 | 2.51 | 1550 | 2.30 | |||||
| IH9PF40-11 | 1ø110 | 60 | 100 | 1.00 | 2.60 | 1500 | 2.60 | 250 | 10.0 | |
| IH9PF40-20 | 40 | 1ø200 | 50 | 70 | 0.40 | 3.12 | 1250 | 2.30 | 450 | 2.0 |
| 60 | 70 | 0.40 | 2.51 | 1550 | 2.30 | |||||
| IH9PF40-22 | 1ø220 | 60 | 80 | 0.40 | 2.51 | 1550 | 2.50 | 450 | 2.0 | |
| IH9PF40-1U | 40 | 1ø115 | 60 | 100 | 1.00 | 2.51 | 1550 | 2.50 | 250 | 8.0 |
| IH9PF40-2C | 40 | 1ø220 | 50 | 90 | 0.36 | 2.68 | 1200 | 2.50 | 450 | 2.5 |
| 45 | 1ø240 | 50 | 110 | 0.36 | 3.08 | 1200 | 2.80 | |||
| IH9PF40-32 | 40 | 3ø220 | 50 | 90 | 0.40 | 3.00 | 1300 | 10.00 | ||
| 50 | 90 | 0.40 | 2.43 | 1600 | 12.00 | |||||
| IH9PF40-33 | 40 | 3ø380 | 50 | 90 | 0.25 | 3.00 | 1300 | 10.00 | ||
| 60 | 90 | 0.25 | 2.43 | 1600 | 12.00 | |||||
| IH9PF40-34 | 40 | 3ø440 | 50 | 90 | 0.20 | 3.00 | 1300 | 10.00 | ||
| 60 | 90 | 0.20 | 2.43 | 1600 | 12.00 | |||||
ㆍFor motor with straight shaft, please write S in place of PF in Motor Type.
ㆍMotor Type in green screen represents the motors with TP(Thermal Protect) according to UL or CE regulation.
※ The inverter is not available on three phase 380V~440V motors.
ㆍInsulation of windings may deteriorate and damage the motor.
■ RATED TORQUE OF GEARED MOTOR
| Speed of Geared Motor | rpm | 500 | 300 | 200 | 120 | 100 | 60 | 50 | 30 | 20 | 15 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 50Hz | 3 | 5 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 100 | 150 |
| 60Hz | 3.6 | 6 | 9 | 15 | 18 | 30 | 36 | 60 | 90 | 120 | 180 | |
| IH9PF40 + 9H□FM | 7.3 | 12 | 18 | 30 | 36 | 55 | 66 | 100 | 100 | 100 | 100 | |
| IH9PF40 + 9H□FB | 7.1 | 12 | 18 | 30 | 35 | 53 | 64 | 100 | 100 | 100 | 100 | |
ㆍThe rotation of geared motor in green screen is reverse of motor rotation.
ㆍSpeed of Geared Motor is based on motor synchronous speed. In normal operation, the speed will be 2 to 15 percent lower than above figure.
ㆍWhen ordering gear head, please fill blank □ with gear ratio
■ MOTOR(STRAIGHT SHAFT) IH9S40 WT 2.5kg

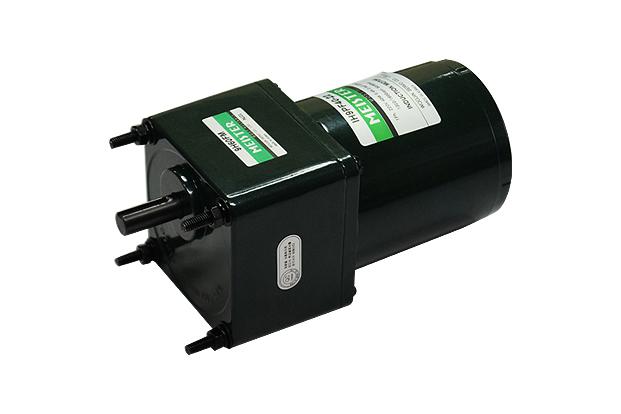

■ GEARED MOTOR IH9PF40 + 9H□ FM(9H□ FB) WT 2.5+0.8/0.9kg
■ BOLT SIZE
| No | L(mm) | GEAR RATIO | BOLT SIZE |
|---|---|---|---|
| 01 | 42 | 1/3 ~ 1/20 | M6×70 |
| 02 | 60 | 1/25 ~ 1/200 | M6×90 |
■ KEY SPEC
■ WIRING DIAGRAM
ㆍThe direction of rotation is seen from the end of motor shaft.
ㆍChange the rotation direction of the motor only after the motor stops completely.
