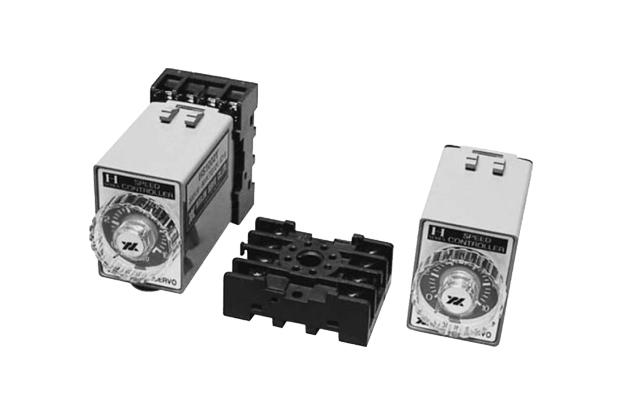

■ GENERAL SPECIFICATION
- Speed Controller with Tacho Generator
- Plug-in type for standard 8pin socket
- Built-in speed setting (external speed setting applicable)
- Instantaneous stop by electric brake sircuit
- Various application
■ PERFORMANCE DATA
| Controller Type | HS□-11G | HS□-11Y | HS□-22G | HS□-22Y |
|---|---|---|---|---|
| Rated Voltage | 110V | 220V | ||
| Voltage Range | Rated Voltage ±10% | |||
| Line Frequency | 50 / 60Hz | |||
| Motor Output | 6 ~ 120W | |||
| TG Voltage | 24V | 12V | 24V | 12V |
| Speed Range | 90~1400rpm / 90~1700rpm | |||
| Speed Variation | 5% (Standard) | |||
| Speed Setting | Built-in(External Setting Attatchable) | |||
| Brake Time | Electric(By Breaking Current) | |||
| Parallel Operation | Not Applicable | |||
| Slow Up · Down | Not Applicable | |||
| Operation Temp. | -10 ~ 40℃ | |||
| Storage Temp. | -20 ~ 60℃ | |||
| Humidity | Below 85% | |||
■ OUTLINE DIMENSION
■ WIRING DIAGRAM
① ONE DIRECTION(일방향운전) + VARIABLE SPEED(가변)6W~120W
- To reverse the rotation from "CW" to "CCW", change the connection as per dotted line.
② ONE DIRECTION(일방향운전) + VARIABLE SPEED(가변) + BRAKE(제동)6W~25W
- To reverse the rotation from "CW" to "CCW", change the connection as per dotted line.
- When switch from "RUN" to "STOP", electric lectric brake acts for approx. 0.5sec and motor stops instantaneously.
③ ONE DIRECTION(일방향운전) + VARIABLE SPEED(가변) + BRAKE(제동)40W~120W
- To reverse the rotation from "CW" to "CCW", change the connection as per dotted line.
- When switch from "RUN" to "STOP", electric brake acts for approx. 0.5sec and motor stops instantaneously.
④ REVERSIBLE(정역운전) + VARIABLE SPEED(가변)6W~120W
- Operate SW2 after motor stops completely.

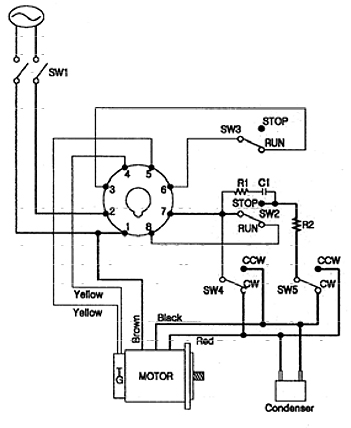

⑤ REVERSIBLE(정역운전) + VARIABLE SPEED(가변) + BRAKE(제동)6W~25W
- When switch from "RUN" to "STOP", electric brake acts for approx. 0.5sec and motor stops instantaneously.
- During this period, do not operate switch SW4, SW5.
- Switching of SW4, SW5 should be earlier than switching of SW2, SW3 from STOP to RUN.
⑥ REVERSIBLE(정역운전) + VARIABLE SPEED(가변) + BRAKE(제동)40W~120W
- When switch from "RUN" to "STOP", electric brake acts for approx. 0.5sec and motor stops instantaneously.
- During this period, do not operate switch SW4, SW5.
- Switching of SW4 SW5 should be earlier than switching Switching of SW4, SW5 should be earlier than switching of SW2, SW3 from STOP to RUN.
■ EXTERNAL SPEED SETTING (외부 속도 설정)

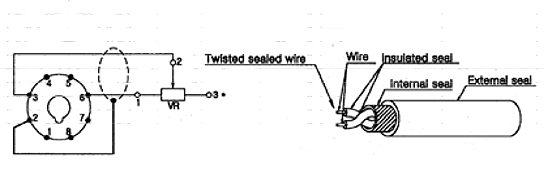

REMOTOE SPEED CONTROL(원격 조작)
- Set the built-in speed setting knob to "0".
- Recommend twisted shield wire and grounding this shield to socket terminal No.2.
MULTI-STEP SPEED SETTING (다단계 속도 설정)
- Set the built-in speed setting knob to "0".
- Set external resistor VR1, VR2, VR3 to multi-setp speed and switch with SW8.
⑦ REVERSIBLE(정역운전) + VARIABLE SPEED(가변) + BRAKE(제동)CONTROLLER의 전기 BRAKE는 사용하지 않을때6W~120W
- Electric brake of control unit is NOT USED simultaneously.
- Operate SW2 after motor stops completely.
- Closing of switch SW1 should be 0.5sec earlier than starting signal of SW4 and SW6.
- Switching for START Switching for START STOP - should be done by switch should be done by switch SW4 and SW6 leaving switch SW1 as "ON".
⑧ REVERSIBLE(정역운전) + VARIABLE SPEED(가변) + BRAKE(제동)CONTROLLER의 전기 BRAKE는 사용할 때6W~25W
40W~120W
- Electric brake of control unit is USED simultaneously.
- When switch from "RUN" to "STOP", electric brake acts and motor stops instantaneously.
- perate SW4 SW5 after motor stops completely Operate SW4, SW5 after motor stops completely.
- Switching of switch SW4 and SW5 should be earlier than switching of switch SW2, SW3, SW9 from "STOP" to "RUN".
- Closing of switch SW1 should be 0.5sec earlier than starting signal of SW2, SW3 and SW9.
- Switching for START-STOP should be done by switch SW2, SW3 and SW9 leaving switch SW1 as "ON".
