• Physical

Size: 220 x 60 x 70mm (Width x Length x Height)

Weight: 2.2kg ㎏ (Including the battery pack and pads)

• Defibrillator

Operating Mode: Semi-automated

Waveform: e-cube biphasic (Truncated exponential type)

Output Energy 200 J at 50 A

Self-Diagnostic Test

Protocol: Voice prompts and indicators guide the user throughout a rescue operation

Controls: Power On/Off Button, i-Button, Shock Button

Indicators:  7 color State LED, Graphical Rescue Guide LED

• Self-Diagnostic Test

· Power On Self-Test, Run-time Self-Test

· Daily, Weekly, and Monthly Self-Test

• ECG Analysis System

Function: Determines the impedance of the patient and evaluates the ECG

of the patient to determine whether it is shockable or non shockable

Impedance Range: 50Ω to 175Ω

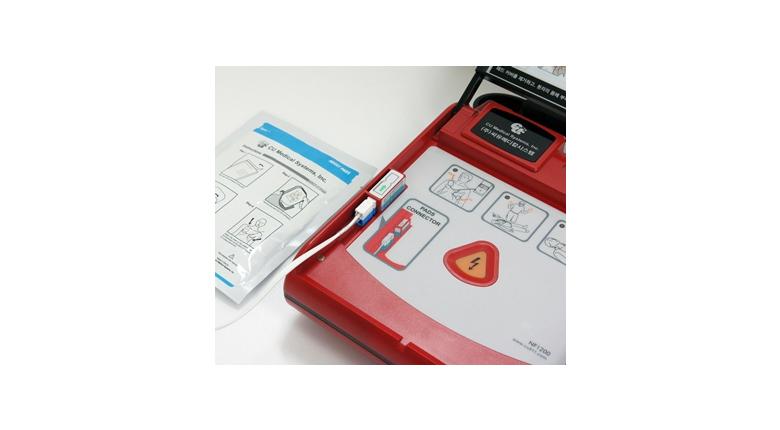

• Defibrillator Pads

self-adhesive, disposable, non-polarized defibrillation pads

• Disposable Battery Pack

Battery Type: 12V DC, 4.2Ah LiMnO2, Disposable

Capacity: At least 200 shocks for a new battery or 8 hours of operating time at room

• Data Storage and Transfer

InfraRed: Wireless transmission of event data to PC through IrDA port

Data Stored: First 40 minutes of ECG and the entire incident’s events and analysis decisions

• Standard Package

Device(1), Adult pads(1), Disposable battery(1), Carrying case(1), ), User’s manual(1)

• Optional Accessories

Pediatric pads(1), CU-Expert PC S/W (1), IrDA Adapter(1)
