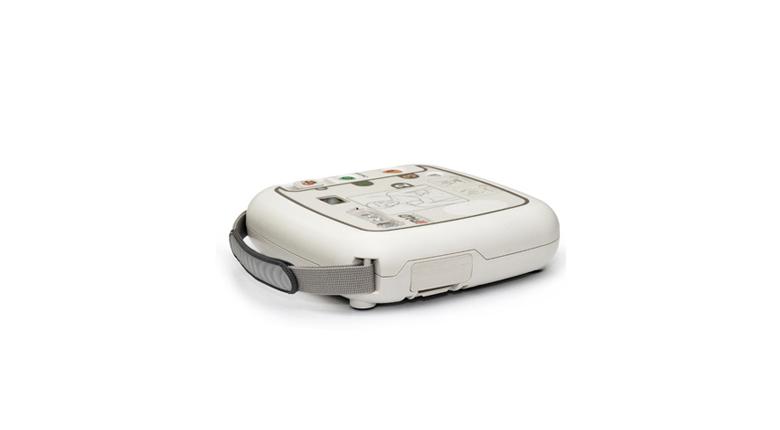

Dimension : 260 x 256 x 70 mm (Width x Length x Height)

Weight : Appr. 2.4kg (Including battery pack and pads)

Operating Mode: Semi-automated

Waveform: e-cube biphasic (Truncated exponential type)

Output Energy

150 J at 50 A load for adults

50 J at 50 A load for children

Self-Diagnostic Test

· Power On Self-Test, Run-time Self-Test

· Daily, Weekly, and Monthly Self-Test

Battery Pack Insertion Test (done when the user inserts the battery pack into

the battery pack compartment of the device)

ECG Analysis System

Fucntion : Determines the impedance of the patient and evaluates the ECG of the

patient to determine whether it is shockable or non shockable

Impedance Range: 25Ω ~ 175Ω

Control Devices, Indicators, Voice Instructions

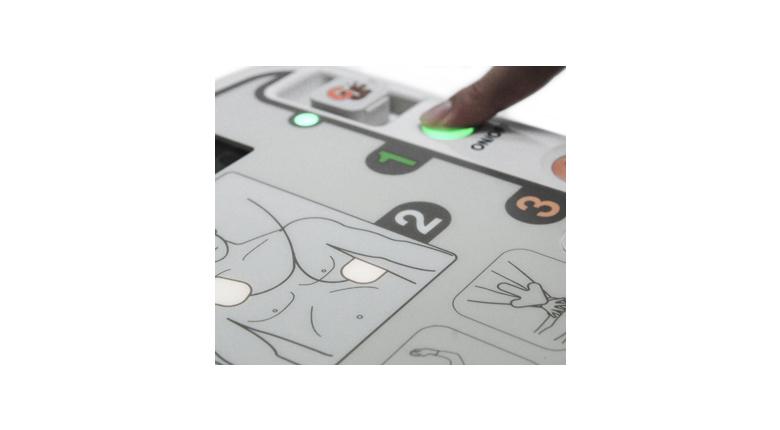

Control Devices Power Button, i-Button, Shock Button, Adult/Pediatric Selection Switch

Status LCD Displays device status, battery level and pads status

CPR Detection Indicator: Lights if CPR is detected; flashes if CPR is not detected.

Disposable Battery Pack

Battery Type: 12V DC, 4.2Ah LiMnO2, Disposable

Capacity: At least 200 shocks for a new battery or 8 hours of operating time at room

Operating: Temperature: 0℃ ~ 43℃ (32℃ ~ 109℃)

Storage: Temperature: -20℃ ~ 60℃ (-4℃ ~ 140℃)

Electrode Area : 110cm2

Cable Length: Total 120cm

Electrode Area: 50cm2

Cable Length: Total 120cm

Data Storage and Transfer

Internal Memory Data Capacity: 5 individual treatments, up to 3 hours per treatment

IrDA:  For PC communications

SD Card External memory: Data may be copied from the internal memory to the SD Card.

• Standard Package

  Device(1), Adult Pads(1), Disposable Battery(1), Carrying Case(1), User's Manual(1)

• Optional Accessories

  Pediactric Pads(1), SD Card(1), CU-Expert software(1)
