INNOVATIVE TECHNOLOGY WITH PATENTS AND CERTIFICATES
To make the products smaller and lighter, we put so much efforts to develop optimized structure. With our patented technologies, we could obtain both simplicity and efficiency.
Continuous R&D of turbo technology is the key for Turbowin to become the market leader in the world of compressor technology. Everything we do here has innovation in its core. Turbowin has more than 54 certificates with over 56 domestic and international patents proving excellence in quality.
HIGH PRESSURE UP TO 8 BAR
Turbowin’s compressors offer high efficiency and outstanding savings in both energy and maintenance.

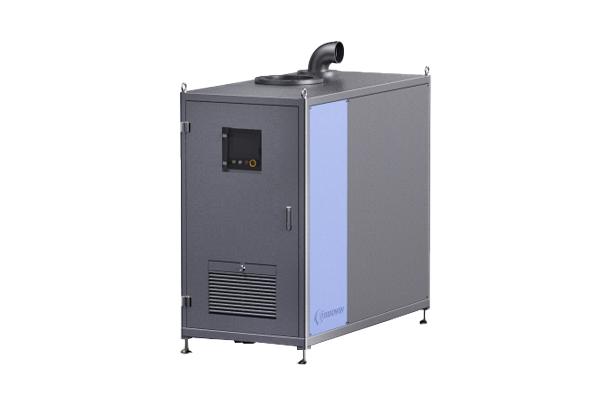

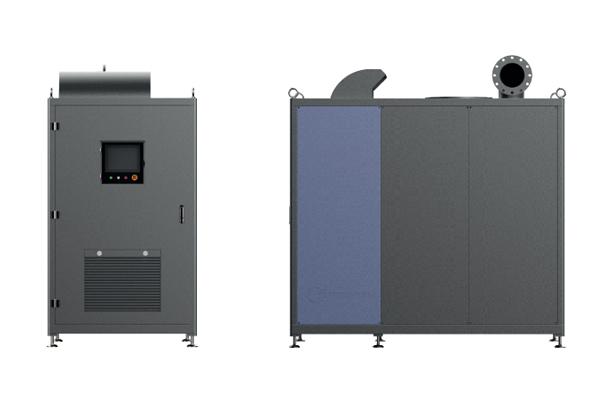

The WH-i Series is designed and manufactured by the extensive research and experience done by our team of in-house engineers, in turn offering packaging solutions across 2 bar, 4 bar and 8 bar pressure ranges. With 2 bar compressors of 1 motor, 4 bar compressors of 1 motor and 2 Coolers, and 8 bar compressors of 2 motors and 4 Coolers, the WH-i packaging comes with slight structural differences as shown below.
|
WH 2BAR SERIES Simple design without cooling system nor any heat exchanger. |
 |
WH 4BAR SERIES Utilizing plate-type heat exchanger resulting in high thermal efficiency and minimized performance degradation. |
 |

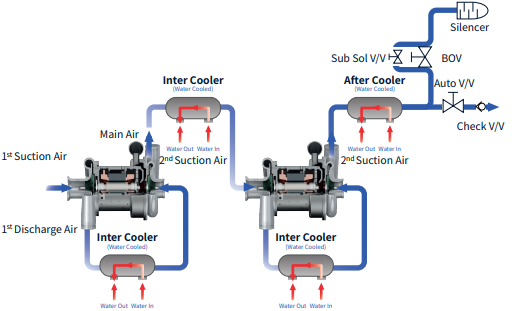

WH 8BAR SERIES Introducing world's best 4-stage centrifugal turbo compressor with customized solution for global customers. |
 |
|
|
|
|
|||
 |
 |
 |
|||
Up to 2 bar, Turbowin’s compressors are offered with ultra-performance dual air-cooling system which requires no cooling devices. From 4 bar to 8 bar, Turbowin offers its package with a water cooling system that will help to reduce the motor temperature by 10 °C compared to other products with similar pressure.
MAXIMIZED EFFICIENCY FROM PROVEN TECHNOLOGY
 |
DUAL AIR-COOLING SYSTEM Turbowin can lower motor temperature by at least 10 degrees compared to other brands through its dual cooling system. This patented technology is composed of motor and inverter with no separate cooling device such as an external cooling fan or sinus filter. |
|
NBW AIR FOIL BEARING Turbowin’s air foil bearing is never bended nor welded. |
|
 |
SUPERSONIC IMPELLER Turbowin’s Supersonic Impeller is in-house designed and manufactured which can be made of aluminum alloy |
|
ULTRA HIGH EFFICIENT PERMANENT Turbowin’s ultra high efficiency permanent magnet motor guarantees more than 97% high efficiency in the range from 20,000 to 220,000 RPM. |
|
 |
EFFECTIVE COOLING SYSTEM Based on Turbowin’s patented dual cooling system, no additional cooling system is required, and the inverter is also air-cooled. High-pressure compressors more than 4bar is installed with inter/after cooling system. |
|
SURGE PROTECTION SYSTEM In the event of entering into surge area, Turbowin’s products do not stop immediately as sub-solenoid valve is activated 3 to 4 times to enable smooth operation in surge areas. |
|
