This product is manufactured by
SOLTECH

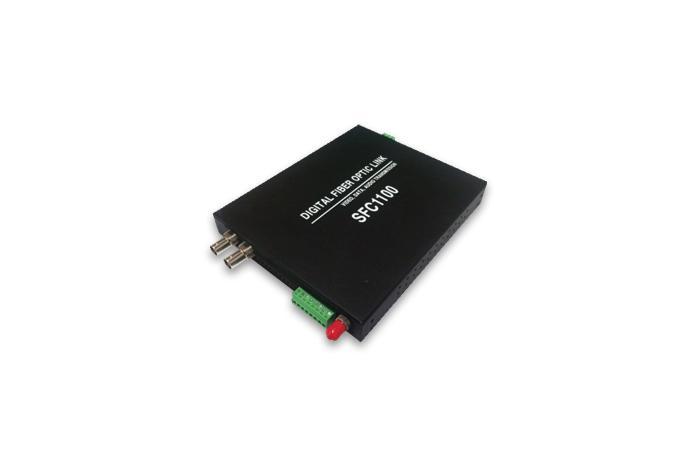

[Discontinued] CCTV Fiber Optic Link
Model Name
SFC1100-2V1D
Data
SFC1100 2V4V8V
Manufacturer information
SOLTECH
Optical communication network equipment supplier, Optical hub, Optical converter, Optical modem, Optical link, Optical cable and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SOLTECH
Brand
-
SKU
36703
Product Name
[Discontinued] CCTV Fiber Optic Link
Model Name
SFC1100-2V1D
Size
-
Weight
-
Product Details
2채널 비디오, 1데이터 신호를 장거리 전송
- 2채널 비디오, 1데이터 신호를 장거리 전송
- 10비트 디지털 방식의 고품질 영상 전송
- Video Input with AGC(Automatic Gain Control)
- Power, Video Presence, Data In/Out, Fiber Link 상태 표시 LED
- Video Input with AGC(Automatic Gain Control)
- 단독형 및 1U/4U 19" Rack모듈형 지원
- 비디오/광포트 원격 모니터링
| 비디오 | 방식 | 입력범위 | 출력범위 | 대역폭(-3db) | ||
| PAL/NTSC | 0.5~2Vpp | 1Vp-p | 8Mhz | |||
| Differential gain | Differential phase | 신호잡음비 | 커넥터 타입 | |||
| ≤1% | ≤ 1˚ | ≥63dB | BNC 75Ω | |||
| 데이터 | 통신방식 | Data Rate | Data Format | Operating Model | 커넥터 타입 | |
| RS232 or RS422/485 | DC to 100kbps | NRZ, RZI, Manchester | Simplex or Full duplex | TB 5~ TB 8 | ||
| Optical | 파장 | 광케이블 타입 | Budget(system) | Out level | Input power | 커넥터 타입 |
| 1310/1550nm | Single Mode, Multi Mode | 12dB | -5~-12dBm | -35dBm | ST | |
| 동작환경 | Stand-alone | Rack-mount | 전원 | 동작온도 | 습도 | |
| 4W | 4W | DC 12V 1.5A | -20°C ~ 70°C | 0% ~ 95% | ||
| 크기 | SFC1100-1V/2V/4V : 147.6mm(W) x 180.6mm(D) x 25.3mm(H) SFC1100-8V : 147.6mm(W) x 180.6mm(D) x 50.6mm(H) | |||||
모델명 | 사 양 |
| SFC1100-2V | Fiber: 1310/1550nm, 2CH BNC 75Ω Video ST Type, 1 Fiber 송수신 20km |
| SFC1100-2V1D | Fiber: 1310/1550nm, 2CH BNC 75Ω Video ST Type, 1CH Data, 1 Fiber 송수신 20km |
| SFC1100-4V | Fiber: 1310/1550nm, 4CH BNC 75Ω Video ST Type, 1 Fiber 송수신 20km |
| SFC1100-4V1D | Fiber: 1310/1550nm, 4CH BNC 75Ω Video ST Type, 1CH Data, 1 Fiber 송수신 20km |
| SFC1100-8V | Fiber: 1310/1550nm, 8CH BNC 75Ω Video ST Type, 1 Fiber 송수신 20km |
| SFC1100-8V1D | Fiber: 1310/1550nm, 8CH BNC 75Ω Video ST Type, 1CH Data, 1 Fiber 송수신 20km |
| SFC1100-1U | 4 Slot Chassis, 19" Rack 장착가능 |
| SFC1100-4U | 16 Slot Chassis, 19" Rack 장착가능(Option: 전원 이중화) |
| ※ Option Module | |
| AUDIO Module | 2CH AUDIO 모듈 추가 가능 |
| DATA Module | 1CH 데이타 모듈(RS485 또는 RS232 추가시, 2CH 데이타 모듈 추가 가능) |
| CONTACT Clause | 2CH C.C 모듈 추가 가능 |
