Manufacturer
SOLTECH
Product Type
Machine
Brand
-
SKU
36697
Product Name
BNC PoE Converter
Model Name
SFC320P
Size
-
Weight
-
Product Details
EOC(Ethernet Over Coaxial) POE 컨버터, 10/100Mbps 1포트 + BNC 1포트
SFC320P 제품은 Ethernet/Fast Ethernet 네트워크에서 동축케이블을 연결하는데 필요한 EXTENDER 입니다.
또한, Power Over Ethernet(PoE)기능을 탑재하여 송신기(SFC320P-T)와 카메라에 전원공급이 가능하며, 동축케이블을 사용하여 IP Data의 장거리 전송이 가능하므로 기존 UTP케이블을 사용하는 네트워크장비의 전송거리(100m 이하)의 단점을 보완할 수 있습니다.
본 제품은 송신기(SFC320P-T)와 수신기(SFC320P-R)로 구성됩니다.
PoE IP 카메라 설치 공사 시 기설된 동축케이블을 재활용할 수 있고, 전원 공사도 할 필요가 없는 제품으로 공기 단축과 시공비용 절감 효과까지 거둘수 있습니다.
- Transmit IP data and Power over coax
- Coax distance Max 2km
- Data rate 100Mbps Full Duplex
- Support Auto MDI/MDIX function
- IEEE802.3af Power over Ethernet
- Internal Surge protection function
- SFC320PM : Receiver, SFC320PS: Transmitter
| 표준 | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100bASE-TX Fast Ethernet |
| RJ45포트 | 10/100/1000Mbps 1포트, Auto-Negotiation, Auto MDI-X |
| Coaxial | BNC 1포트, female connector Coax distance Max : 2km |
| POE | Max. 23Watt |
| LED 표시 | Power, Link/Ack, Speed, Duplex |
| Date rate | 100Mbps Full Duplex |
| 온도범위 | 동작온도: 0°C ~ 60°C |
| 습도 | 10 ~ 90% (이슬이 맺히지 않을 것) |
| 입력전원 | DC 48V ~ 55V |

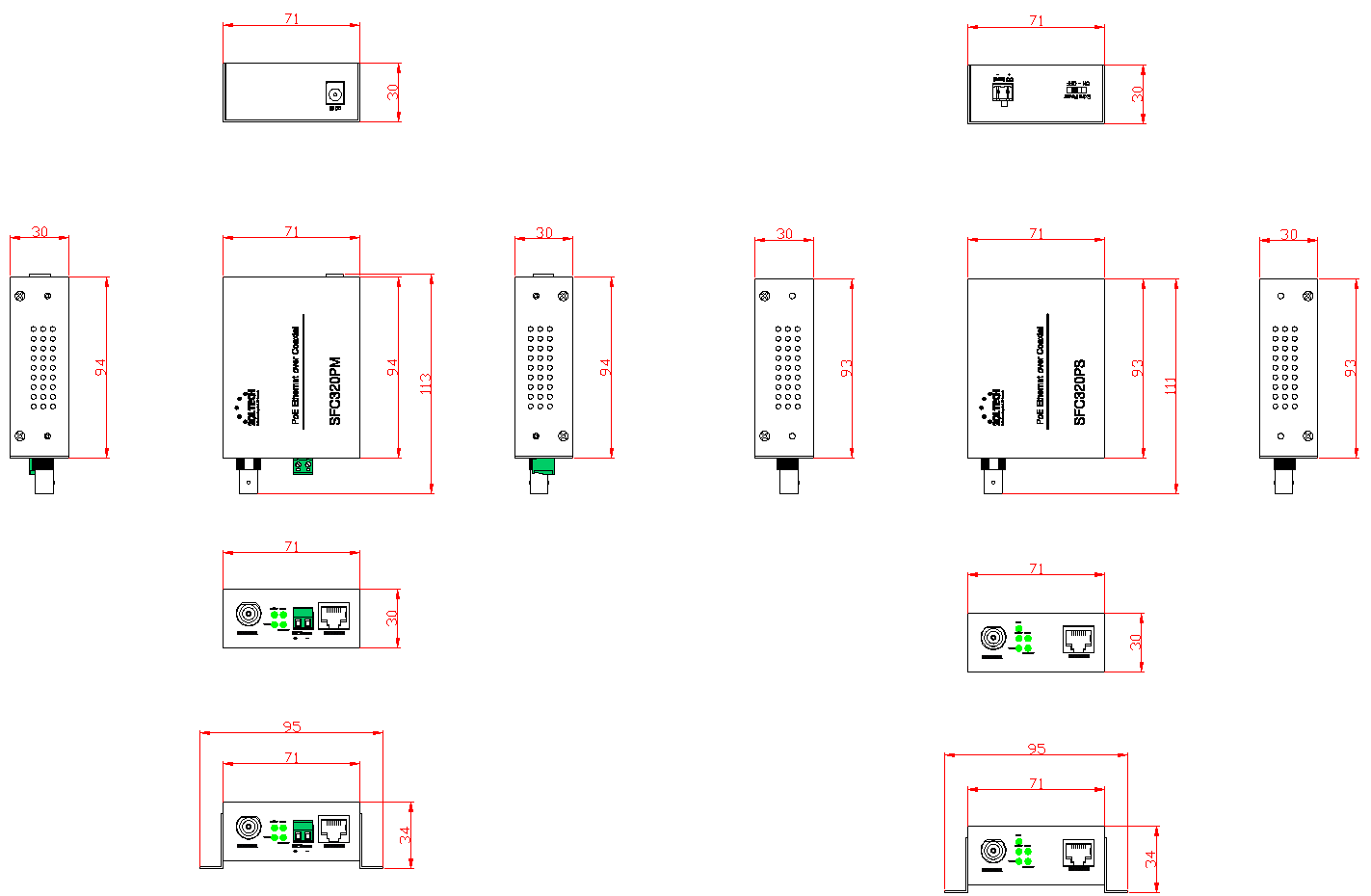

| 크기 | 71mm(W) x 94mm(D) x 30mm(H) |
