This product is manufactured by
SOLTECH

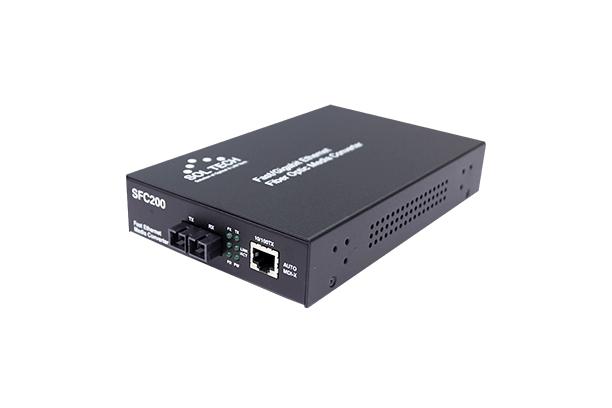

100Mbps Ethernet Media Converter
Model Name
SFC200-SCS
Data
카탈로그-솔텍-광컨버터-100Mbps 광컨버터-SFC200-SCS
Manufacturer information
SOLTECH
Optical communication network equipment supplier, Optical hub, Optical converter, Optical modem, Optical link, Optical cable and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SOLTECH
Brand
-
SKU
36656
Product Name
100Mbps Ethernet Media Converter
Model Name
SFC200-SCS
Size
-
Weight
-
Product Details
1-Fiber Port + 1-TP Port, Single-mode, 20km, 1310nm, SC Type
- Converts TP (10/100Mbps) to Fiber Optic (100Base-FX) for Long distance Transmission
- Network Component for Long distance & Noise Solution, Optical LAN, FA, Internet Network, FTTH etc.
- 10/100Mbps Throughput, Auto Negotiation
- TP Cable Auto MDI-X
- LLCF (Link Loss Carry Forward)
- LED Indication for Auto Negotiation and Connection Status
- 10/100Mbps, Full/Half-duplex Manual Operation (DIP Switch)
| Standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX |
|
|---|---|---|
| Interface | RJ45 Ports | 10/100Mbps Auto-Negotiation, Auto MDI/MDI-X TP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm(100m) |
| Fiber Ports | 1-Port 100Mbps (ST/SC Connector) Multi mode : 62.5/125㎛ (2km),Single mode : 9/125㎛(~120km) |
|
| LED Indicators | Per unit : Power Per port(TX) : Link, Activity, FDX/HDX, speed Per port(FX) : Link, Activity |
|
| Dip Switch | Internal, Auto-Negotiation, 10/100Mbps, Full/Half Duplex, LLCF on/off | |
| Performance | Transmission speed | 100Mbps |
| Environmental | Temperature | Operation: 0℃ ~ 60℃ Store: -20℃ ~ 80℃ |
| Humidity | 5 ~ 95% (Non-condensing) | |
| Power consumption | SFC200-SCS/SCSWA/SCSWB : 2.7W, SFC200-SCM : 2.5W, SFC200-STM : 3.3W SFC200-SCSWA-I/SCSWB-I/SCS-I : 3.1W, SFC200-SCM-I : 3.0W SFC200-STM-I : 3.7W |
|
| Installation | Stand alone, Center Mount Module Type | |
| Input Voltage | DC 5V 2A SMPS Adapter | |
| Dimensions | Stand alone: 71mm(W) x 94mm(D) x 26mm(H) Built-in Power Type : 118mm(W) x 184mm(D) x 34mm(H) |
|
More products
ACCESSORIESKBN-FS1000, KBN-FS750B, KBN-FS750W, KBN-FS300F, KBN-SS1000, KBN-SS750B, KBN-SS750W, KBN-LB1000, KBN-LB750, KBN-BP1U, KBN-BP2U, KBN-BP3U, KBN-BP4U, KBN-EP1U, KBN-MP1U5H, KBN-MD1UPVC, KBN-LCDKIT9U, KBN-LCDP3U, KBN-BPDU8W, KBN-BPDU6W, KBN-DRAWER2U, KBN-CAGEM6

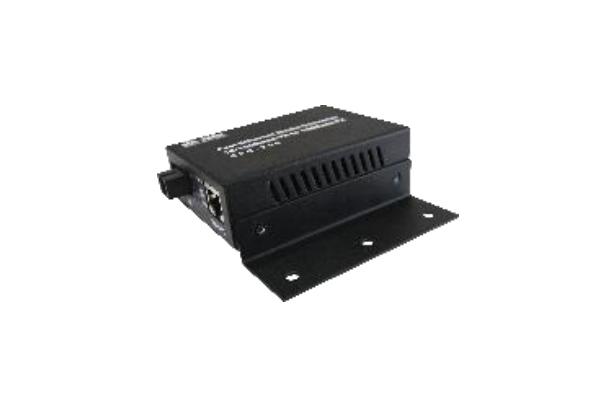

BracketSFC100, SFC200, SFC2000, SFC400, SFC300, SFC4000A, SFC4000, 400GM, SFC1100, SFC1200, SFC8000

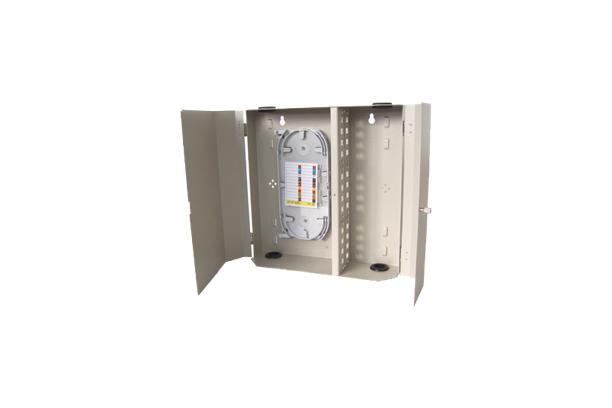

Fiber Distribution FrameFDF-MINI-XX-4P, FDF-MINI-XX-8P, FDF-MINI-XX-12P, FDF-RACK-XX-4P, FDF-RACK-XX-8P, FDF-RACK-XX-12P, FDF-RACK-XX-24P, FDF-WALL-XX-12P, FDF-WALL-XX-24P, FDF-WALL-XX-48P, OFD-A1-12P, OFD-A1-24P, OFD-B1-12P, OFD-B1-24P, OFD-B2-48P, OFD-C1-72P, OFD-C2-144P
ACCESSORIESKBN-FS1000, KBN-FS750B, KBN-FS750W, KBN-FS300F, KBN-SS1000, KBN-SS750B, KBN-SS750W, KBN-LB1000, KBN-LB750, KBN-BP1U, KBN-BP2U, KBN-BP3U, KBN-BP4U, KBN-EP1U, KBN-MP1U5H, KBN-MD1UPVC, KBN-LCDKIT9U, KBN-LCDP3U, KBN-BPDU8W, KBN-BPDU6W, KBN-DRAWER2U, KBN-CAGEM6

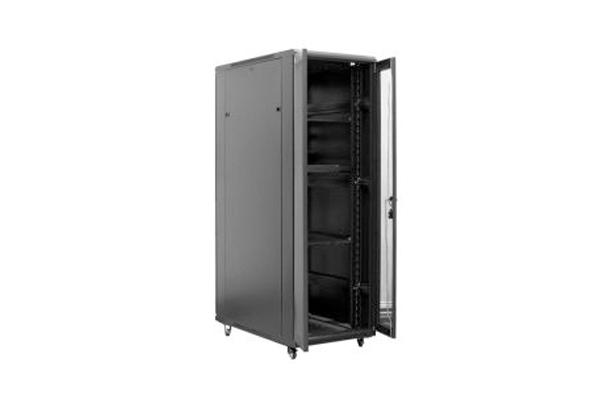

SERVER RACKSOL-VD1000, SOL-VD1000-47U, SOL-VD1000-42U, SOL-VD1000-37U
[Discontinued] Fiber Optic Bypass Switch SFC-Bypass, SFC-Bypass-2SC, SFC-Bypass-4LC

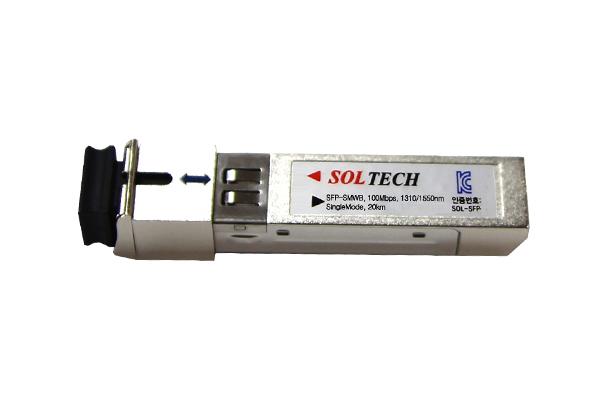

100Mbps SFP Optical TransceiverSFP-SMWB, SFP-SMWB20

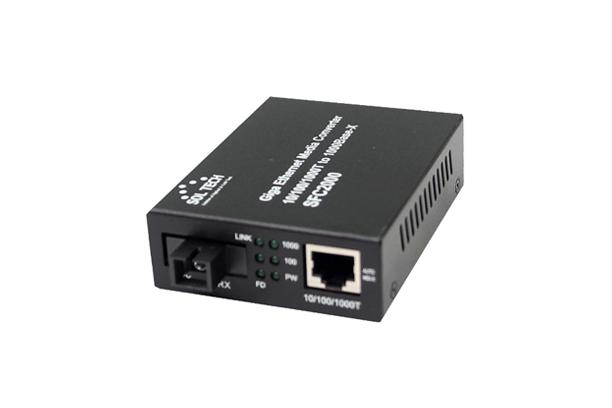

1Gbps Ethernet Media ConverterSFC2000-TWLA/20, SFC2000-TWL20A

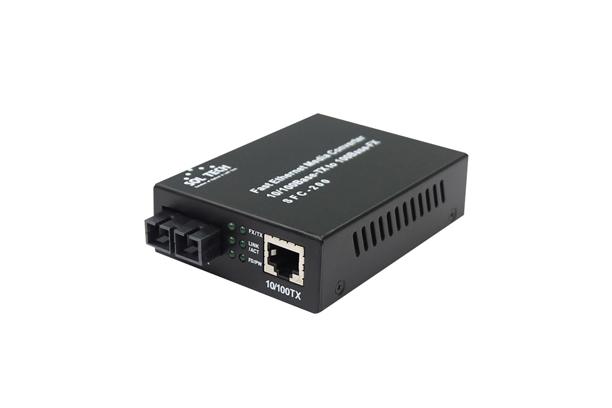

100Mbps Ethernet Media ConverterSFC200-SCM/M
