This product is manufactured by
SOLTECH

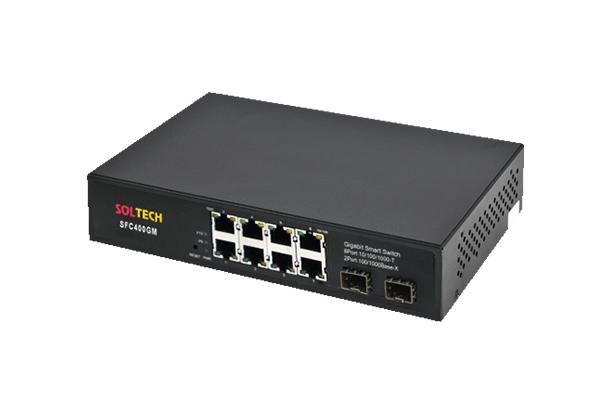

1Gbps L2 Managed Ethernet Switch
Model Name
SFC400GM
Data
카탈로그-솔텍-이더넷 광스위치-1Gbps L2 관리형 이더넷 스위치-SFC400GM
Manufacturer information
SOLTECH
Optical communication network equipment supplier, Optical hub, Optical converter, Optical modem, Optical link, Optical cable and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SOLTECH
Brand
-
SKU
36651
Product Name
1Gbps L2 Managed Ethernet Switch
Model Name
SFC400GM
Size
-
Weight
-
Product Details
10/100/1000Mbps TP 8포트 + SFP 2슬롯 Fiber Optic Switch
SFC400GM은 10port 10/100/1000Mbps Web Smart Gigabit Ethernet Switch 입니다. SFC400GM은 non-blocking wire-speed 성능을 가지고 있습니다. 20Gbps 내부 Switch fabric을 통해 Gigabit Ethernet Switch는 backbone or high-power servers로 연결되는 보안 토폴로지에서는 데이터 전송의 매우 큰 양을 처리 할 수 있습니다. SFC400GM은 8K MAC 주소 테이블까지 알아 볼 수 있으며 Packet 손실 위험 없이 유선 Packet 전송 성능을 제공합니다. 높은 데이터 처리량은 Gigabit 환경의 네트워크로 업그레이드하실 사용자에 대해 편리함을 제공 할 수 있습니다.
- TP 8포트 + SFP 2슬롯 기가비트 이더넷 스위치
- 20Gbps switch fabric, non-blocking switch architecture
- IEEE 802.3Q Tagged based/Port Based VLAN
- IGMP Snooping 지원
- SNMP Trap (Cold start, Port Link, Power status)
- 네트워크 보안을 위한 IEEE 802.1x 사용자 인증 지원
- 네트워크 에러 및 트래픽 분석을 위한 Port Mirroring 지원
- MAC-based 802.3ad LACP에 의한 Link Fail-over Automatic
- RSTP (Rapid Spanning Tree Protocol)
- 19”Rack 장착 가능
| Standards | IEEE 802.3/3u/3ab/3z 10Base-T/ 100Base-TX and 1000Base-T/ Gigabit Fiber IEEE 802.3ad Port trunk with LACP IEEE 802.1w Rapid spanning tree protocol IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control |
| RJ45 포트 | 10/ 100/1000Mbps TP 8포트 Auto-negotiation Auto MDI-X |
| 광포트 |
10/ 100/1000Mbps TP 8포트
Auto-negotiation, Auto MDI-X
|
| LED 표시 |
Power, 1000Mbps Link/Act
10/100Mbps Link/Act per port
|
| Back Plane |
Switch Fabric 20Gbps
8K MAC Address table
Jumbo Frame 9.6Kbytes
|
| Layer 2 | Management Interfaces : Web Browser, SNMPv1, v2c monitor and SNMP Trap VLAN : Port-Based / 802.1Q Tagged Based VLAN Up to 64 VLAN groups Link Aggregation : Supports 4 groups of 8-Port trunk IEEE 802.3ad LACP QoS : Traffic classification based on 802.1p priority, DSCP field in IP Packet IGMP Snooping : IGMP(v1/v2/v3) Snooping, up to 64 multicast Groups |
| 동작환경 |
동작온도 : 0°C ~ 70°C
보관온도 : -20℃ ~ 80℃
습도 : 5 ~ 95% (이슬이 맺히지 않을 것)
|
| 입력전원 |
100~240VAC, 50/60Hz.
소비전력: 8.8W
|
| 크기 | 217mm(W) x 155mm(D) x 44mm(H) |
