Manufacturer
SOLTECH
Brand
-
SKU
36612
Product Name

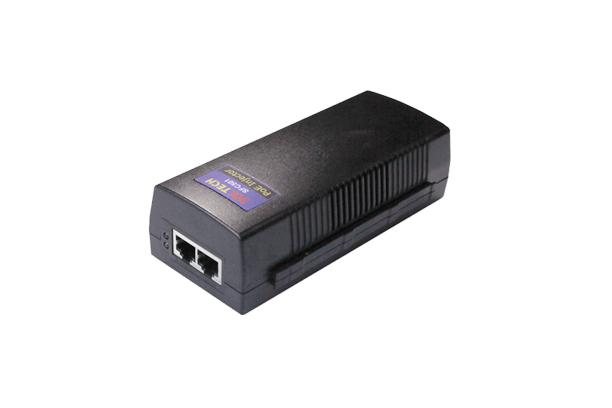

PoE Injector
Model Name
SFC501
Size
-
Weight
-
Product Details
POE 인젝터 10/100Mbps POE 1포트
SFC501은 POE 포트를 지원하는 100Mbps POE 인젝터 입니다.
- 1포트 POE 19Watt 지원
- 전송거리 최대 100m
- 220VAC 전원 내장형
- 과전류 방지 회로 장착
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3 af, IEEE 802.3 at |
| RJ45포트 | POE 10/100Mbps TP 1포트 Auto-Negotiation, Auto MDI-X TP/STP Cat. 3,4,5 Cable EIA/TIA-568 100-ohm(100m) |
| PoE | POE Power Budget: Max. 19Watt Power Pin: 4/5(+), 7/8(-) POE Output: 48V~56V |
| 동작환경 | 동작온도: 0°C ~ 60°C 보관온도: -20°C ~ 80°C 습도: 5% ~ 95% (이슬이 맺히지 않을것) |
| 입력전원 | 110~240VAC, 50/60Hz |

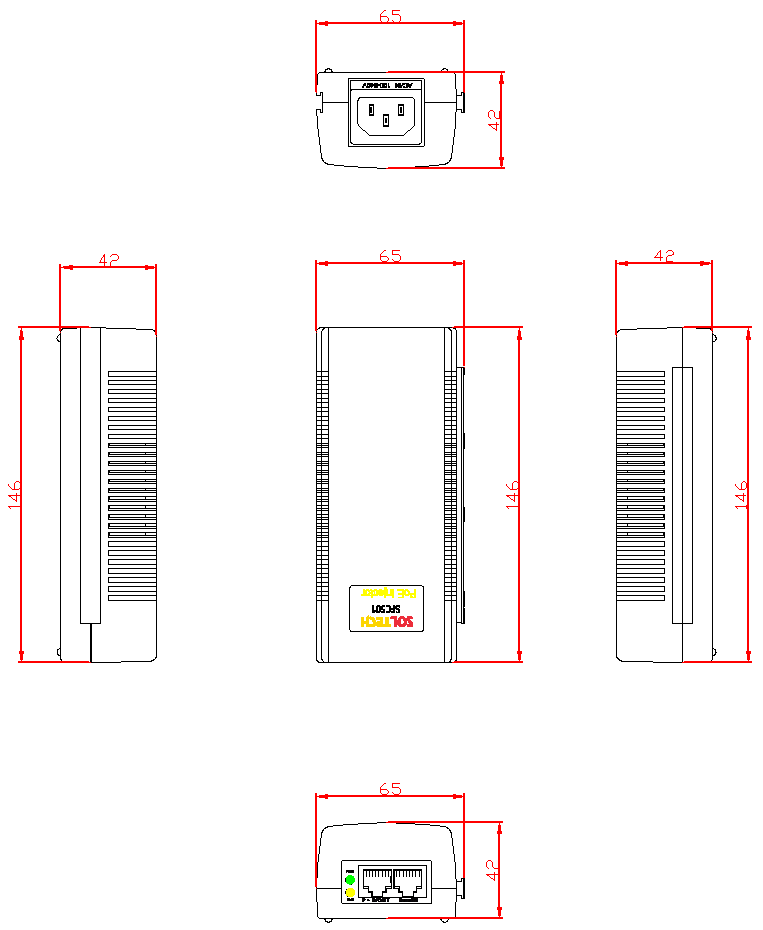

| 크기 | 60mm(W) x 145mm(D) x 44mm(H) |
