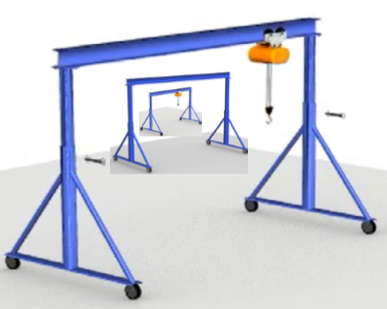

Portable Gantry Crane


Fixed Height

Fixed Height Steel Gantry Cranes provide an economical way to lift materials anywhere within a facility. The casters enable you to move the gantry around your work area. This is a more cost-effective lifting solution for areas for infrequent lifts than a more expensive permanent structure. Our heavy duty end frame design with square tubing uprights, knee braces and channel base provides stable lifting and movement.

  • Capacities from 1 ton - 5 ton
  • Spans from 2m - 9m
  • Heights from 3m - 6m
  • Easily moved to any location in a facility
  • Cost effective for areas with infrequent lifts

Adjustable Height

Adjustable Height Steel Gantry Cranes provide an economical way to lift materials anywhere within a facility. The casters enable you to move the gantry around your work area. This is a more cost-effective lifting solution for areas of infrequent lifts than a more expensive permanent structure. Our heavy duty end frame design with square tubing uprights, knee braces and channel base provides stable lifting and movement.

  • Capacities form 1 ton - 5 ton
  • Spans from 2m - 9m
  • HUB heights range from 2m (min) to 6m (max)
  • Adjustable in 6" increments to provide different lifting heights
  • Easily moved to any location in a facility
  • Cost effective for areas with infrequent lifts
