product Image
기계식 자동온도조절기
Model Name
RS-320
Series
Temperature & Humidity Controller
Data

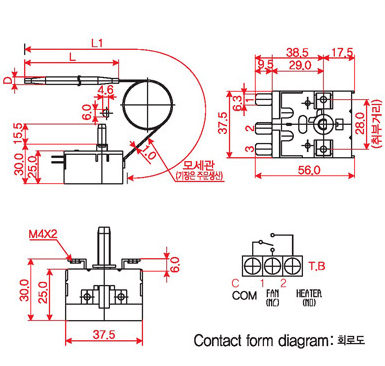

도면-런전자-기계식 자동온도조절기-RS-320, RS-120, RS-90, RS-50, RS-30
Manufacturer information
provider logo
RUN ELECTRONICS

Distribution panel parts manufacturer, Temperature controller, Humidity controller, Space heater, Fan heater and more

Problem with product info?
Update request
Manufacturer
RUN ELECTRONICS
Product Type
Machine
Brand
-
SKU
135397
Product Name
기계식 자동온도조절기
Model Name
RS-320, RS-120, RS-90, RS-50, RS-30
Size
-
Weight
-
Product Details



Characteristic

1. 산업용 냉동 · 냉장고, 제빙기, 냉온수기, 자동판매기, 전기히터, 가스오븐, 각종 산업용 · 공업용 용기





Model Width Length Height

Attachment hole

Rating current Sensor Size Temp range Temp set error Temp hysteresis Note
리드선 (L1) 감온구 (D) 센서길이 (L)
RS-30 37.5 56 30 28 AC250V, 16A 1m 109mm 30~30 ±5℃ 7℃
RS-50 37.5 56 30 28 AC250V, 16A 1m 109mm 0~50℃ ±5℃ 7℃
RS-90 37.5 56 30 28 AC250V, 16A 1m 73mm 0~90℃ ±5℃ 7℃
RS-120 37.5 56 30 28 AC250V, 16A 1m 78mm 0~120℃ ±6℃ 10℃
RS-200 37.5 56 30 28 AC250V, 16A 1m 65mm 0~200℃ ±10℃ 10℃
RS-320 37.5 56 30 28 AC250V, 16A 1m 169mm 50~320℃ ±10℃ 30℃
65mm 30℃



Ambient temp Relative humidity Custody temp Weight Case materials Attachment bolt Terminal lug Certification
-20~60℃ 30~80% RH -20~60℃ 84g ABS M4 x 8 하우징 250단자 KC

※ We prefer the temp range of the control panel is -10~50℃

※ In case of using for machinery concerning injury and tremendous property damage of heavy, peripheral accessories attach & use safety device over again.
