Automatic External Defibrillator

• Simultaneous ECG Analysis and High-Voltage Charging(PCT Patent No. 10-19574) and Pre-Connected Pads: Reduces defibrillation time to within 21 seconds, with analysis and charging completed within 10 seconds

• ICON LED indicators and sound alerts operate simultaneously, making it easy for anyone to use

• LCD Indicator allows for easy management by displaying battery and device status when the power is off

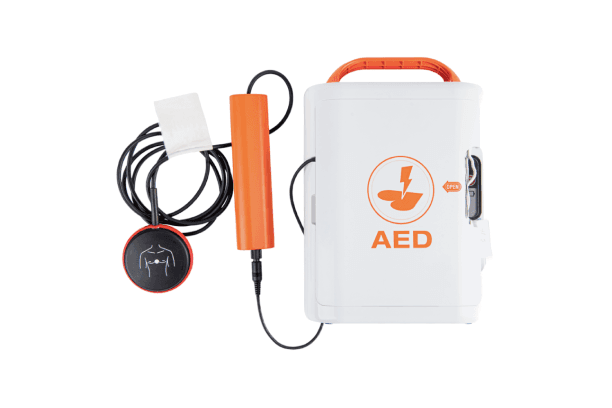

• Universal Pads mode selection button allows use for both adults and children

• Self-Test functions: regular inspections (daily/weekly/monthly), POST(power-on self test), and BIST(Battery insert self-test) check the main unit, battery, temperature, and pad status, displaying results with O or X indicators

• IR Port for easy PC connection and SD Card for data review and software upgrades.

• 2020 AHA(American Heart Association) Guidelines Compliant

• Shock Delivery: 170~195J(±5%) for adults, 44~51J(±5%) for children

• Dimensions: 200(W) x 286.5(h) x 90(D) mm

• Weight: Approximately 1.95kg (including battery)

• IP Level: IP55 protection against liquid and dust intrusion.



Detailed Description

Automatic External Defibrillator(AED)

The Mediana AED is a medical device designed to restore heart function by delivering an electric shock when necessary, analyzing the heart condition of the patient in cases of sudden cardiac arrest, where the heart stops beating and oxygen supply is halted. This AED can be used anytime, anywhere, and by anyone to address emergency cardiac conditions.

The Necessity of AEDs

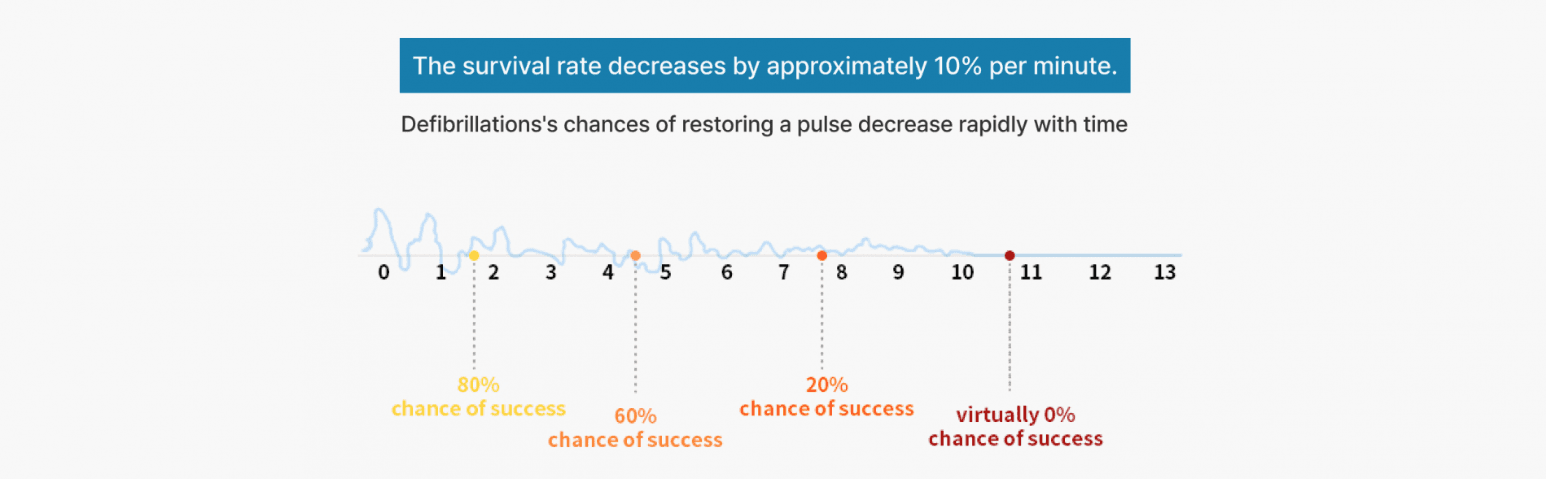

In the event of cardiac arrest, the heart stops, and oxygen is no longer supplied to the brain and heart. Without prompt treatment, brain damage begins within 4 minutes, and death can occur within 10 minutes. To prevent heart damage and brain death in emergency situations, early CPR (Cardiopulmonary Resuscitation) and the use of an AED (Automatic External Defibrillator) are crucial. Without them, the survival rate decreases by approximately 7-10% for every minute that passes beyond 5 minutes.

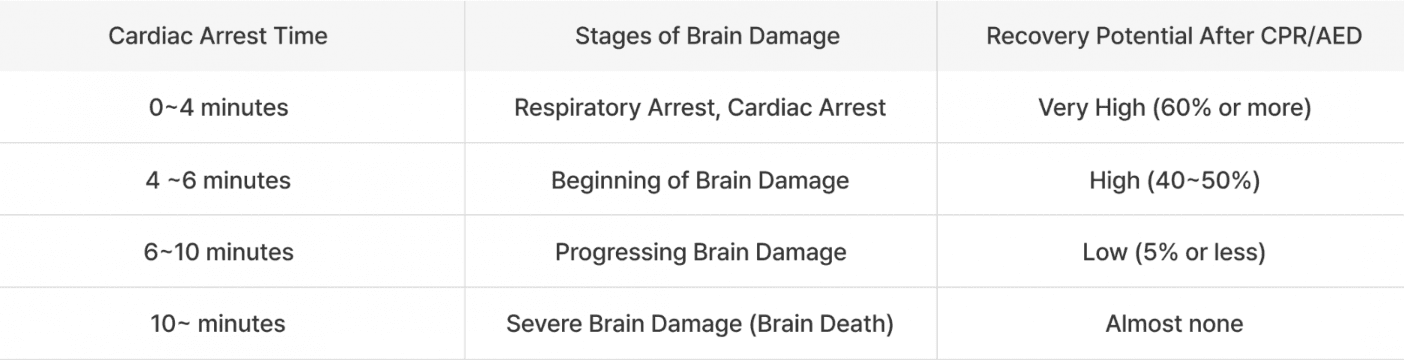

AED Response time and survival rate

AED Response Time and Survival Rate

As shown in the table, using an AED for cardiac arrest patients can significantly increase the chances of saving a life. The timely use of an AED can provide a critical opportunity to save the lives of cardiac arrest patients. In South Korea, over 30,000 people lose their lives annually due to sudden cardiac arrest, with a resuscitation rate of only about 8.7%, and just 5.4% of patients are discharged with normal brain function. In contrast, other advanced countries have a resuscitation rate of 10-30%.
