Manufacturer
KYUNGIN ENGINEERING
Product Type
Machine
Brand
-
SKU
59186
Product Name

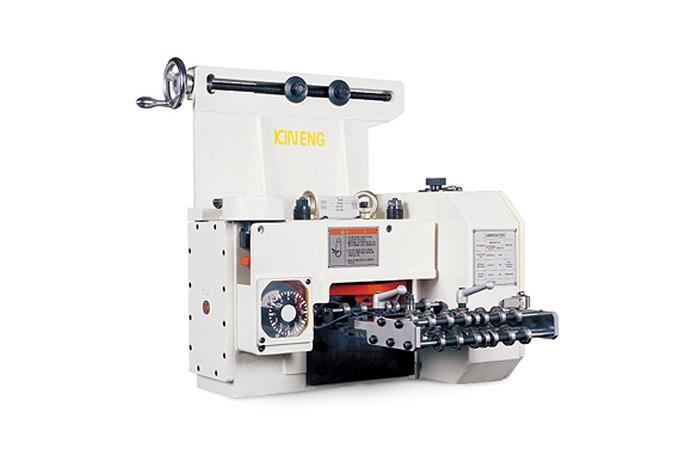

Cam Roll Feeder
Model Name
CF-Series
Size
-
Weight
-
Product Details
ㆍKNCF-150, 150W, 150H
ㆍKNCF-250, 250W, 250H
ㆍKNCF-350, 350W, 350H
ㆍKNCF-450, 450W, 450H
ㆍKNCF-150D
ㆍKNCF-150R
ㆍRapid traverse by CAM INDEX and high definition preservation
ㆍBy CAM relay gong structure angle control
ㆍ1/100 PITCH function by 4 stages gear hanger
ㆍIt is TIMMING BELT drive system and spiral simplicity
ㆍDOUBLE FEEDING method, It is most suitable in outturn enlargement
ㆍROOLER CHANGE - Best ability exhibition in PITCH work for fixing
LENGTH OF FEED
| 모델 | Model | CF-150 CF-150D CF-150R | CF-150W CF-250W CF-350W CF-450W | |
| 항목 | item | 분할수 Index No. | ||
| 이송길이 | Length of feed | 24 | 2 ~ 40 | - |
| 12 | 4 ~ 80 | 4 ~ 120 | ||
| 8 | 4 ~ 80 | 4 ~ 120 | ||
| 6 | 8 ~ 160 | 8 ~ 240 | ||
| 4 | 12 ~ 200 | 12 ~ 280 | ||
| 3 | 14 ~ 250 | 14 ~ 380 | ||
SPECIFICATIONS
| 모델 | Model | CF-150 CF-150W CF-150D CF-150R | CF-250 CF-250W CF-250WH | CF-350 CF-350W CF-350WH | CF-450 CF-450W CF-450WH |
| 항목 | item단위 | ||||
| 재료폭 | Stock widthmm | 150 | 250 | 350 | 450 |
| 재료두께 | Stock thicknessmm | 0.2 ~ 2.3 | |||
| 이송각도 | Feeding angle deg | 180。 | |||
| 릴리즈각도 | Pilot release angledeg | 조정 / Adjustable | |||
| 이송정도 | Accuracymm | ± 0.04 | |||
| 능력 | Capacitym/min | KNCF MODEL : 28 (Main Roll : Ø70) KNCFW MODEL : 45 (Main Roll : Ø100) KNCFW-H MODEL : 60 (Main Roll : Ø120) | |||
| 중량 | Weightkg | 160 | 185 | 213 | 245 |
