KIHEUNG MACHINERY, The Republic of Korea - Komachine Supplier Profile and Product List

- A specialized machine tool manufacturer with over 50 years of history since its establishment in 1968. A producer of milling machines, machining centers, and universal machines. A company that has established a unique position in the field of universal head development. Focused on securing future growth engines through continuous change and innovation. A global enterprise recognized for its value in the world market through the expansion of its global business network.A specialized machine tool manufacturer with over 50 years of history since its establishment in 1968. A producer of milling machines, machining centers, and universal machines. A company that has established a unique position in the field of universal head development. Focused on securing future growth engines through continuous change and innovation. A global enterprise recognized for its value in the world market through the expansion of its global business network.

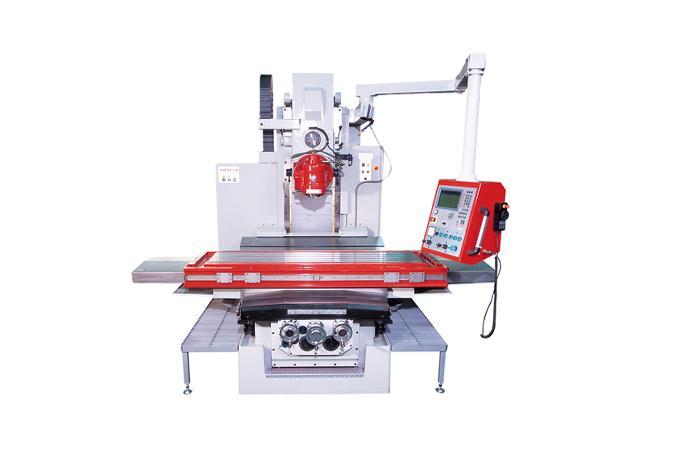

- CNC Bed Type Milling Machine (U1000, U1200N, U1050, U1250, U1350, U1500): Capable of heavy-duty cutting to precision machining, suitable for medium to large and long workpieces with a maximum loading capacity of 16,000kg. Features an internal cooling system for the Y-axis ball screw, an integrated steel plate structure, spindle air blow function, and C3 class preloaded double-nut type KORTA ball screws from Spain. Equipped with a sophisticated head cooling system, German TANDLER bevel gears, SKF bearings, a 2-step ZF gearbox, Heidenhain linear scales, an air filtering system DA400, and Y-Z axis thermal compensation system.CNC Bed Type Milling Machine (U1000, U1200N, U1050, U1250, U1350, U1500): Capable of heavy-duty cutting to precision machining, suitable for medium to large and long workpieces with a maximum loading capacity of 16,000kg. Features an internal cooling system for the Y-axis ball screw, an integrated steel plate structure, spindle air blow function, and C3 class preloaded double-nut type KORTA ball screws from Spain. Equipped with a sophisticated head cooling system, German TANDLER bevel gears, SKF bearings, a 2-step ZF gearbox, Heidenhain linear scales, an air filtering system DA400, and Y-Z axis thermal compensation system.
- CNC Bed Type Milling Machine with Rotary Table (COMBI-U7, RT1000, RTW1000): A universal rotary table type machining center with a maximum rotary table loading capacity of 8,000kg. Suitable for machining workpieces requiring diverse positioning.CNC Bed Type Milling Machine with Rotary Table (COMBI-U7, RT1000, RTW1000): A universal rotary table type machining center with a maximum rotary table loading capacity of 8,000kg. Suitable for machining workpieces requiring diverse positioning.
- Floor Type Milling Center (RiGiTRAX, HiTRAX-U, HiTRAX-H, TRAX, WiNGTRAX): The RiGiTRAX model is a floor type milling machine with a maximum loading capacity of 15,000kg, enabling efficient work execution through column movement and work zone division. The HiTRAX-H model is a high-rigidity horizontal boring machine with a 130mm boring spindle capable of 700mm travel, maximum output of 56kW, maximum torque of 2901Nm, and maximum spindle speed of 2500rpm. Utilizes a double drive system with preloaded rack-and-pinion for X-axis column movement. The WiNGTRAX model is a milling and boring machine with 6000-20000mm travel and 60kW spindle power.Floor Type Milling Center (RiGiTRAX, HiTRAX-U, HiTRAX-H, TRAX, WiNGTRAX): The RiGiTRAX model is a floor type milling machine with a maximum loading capacity of 15,000kg, enabling efficient work execution through column movement and work zone division. The HiTRAX-H model is a high-rigidity horizontal boring machine with a 130mm boring spindle capable of 700mm travel, maximum output of 56kW, maximum torque of 2901Nm, and maximum spindle speed of 2500rpm. Utilizes a double drive system with preloaded rack-and-pinion for X-axis column movement. The WiNGTRAX model is a milling and boring machine with 6000-20000mm travel and 60kW spindle power.
- Double Column Machining Center (MiMAX, SUPER MiMAX, MiMAX-W): A bridge-type cross rail elevating double column machining center boasting powerful milling capabilities. Specialized for large workpiece machining with various optional heads.Double Column Machining Center (MiMAX, SUPER MiMAX, MiMAX-W): A bridge-type cross rail elevating double column machining center boasting powerful milling capabilities. Specialized for large workpiece machining with various optional heads.
- Table Type CNC Milling Machine (COMBi-U80N/U100N(II)): A simultaneous 3-axis CNC milling machine suitable for small to medium-sized workpieces. Offers FANUC 0i, Heidenhain TNC620, or Siemens 828D controllers. Features a maximum spindle speed of 3000rpm, maximum output of 24kW, and a universal Huron head (up-head, low-head 360-degree rotation).Table Type CNC Milling Machine (COMBi-U80N/U100N(II)): A simultaneous 3-axis CNC milling machine suitable for small to medium-sized workpieces. Offers FANUC 0i, Heidenhain TNC620, or Siemens 828D controllers. Features a maximum spindle speed of 3000rpm, maximum output of 24kW, and a universal Huron head (up-head, low-head 360-degree rotation).
- Universal Head Technology: Consistent development of universal heads since its founding in 1968. Possesses technology for various heads including manual heads, A2 heads, A4 heads, orthogonal heads, 1-degree indexing heads, and 0.001-degree indexing heads.Universal Head Technology: Consistent development of universal heads since its founding in 1968. Possesses technology for various heads including manual heads, A2 heads, A4 heads, orthogonal heads, 1-degree indexing heads, and 0.001-degree indexing heads.
- Over 50 years of machine tool manufacturing history and accumulated technical know-how. A unique position in the milling machine and universal head sectors at the forefront of Korea's machinery industry development.Over 50 years of machine tool manufacturing history and accumulated technical know-how. A unique position in the milling machine and universal head sectors at the forefront of Korea's machinery industry development.
- Acquisition of advanced technology through technical partnerships with leading European companies and the use of high-quality core components from Europe, including Germany, Italy, and Spain. German-made main components for enhanced performance, reliability, and reduced after-sales service incidents.Acquisition of advanced technology through technical partnerships with leading European companies and the use of high-quality core components from Europe, including Germany, Italy, and Spain. German-made main components for enhanced performance, reliability, and reduced after-sales service incidents.
- Capability in designing and producing high-rigidity, high-precision, and high-reliability products. High torque transmission and powerful cutting capabilities ensured by high-rigidity large bearing spindles, well-designed gearboxes, and large cross-section ram structures. Superior accuracy provided by large ball screws, guideways, and standardized linear scales on all axes.Capability in designing and producing high-rigidity, high-precision, and high-reliability products. High torque transmission and powerful cutting capabilities ensured by high-rigidity large bearing spindles, well-designed gearboxes, and large cross-section ram structures. Superior accuracy provided by large ball screws, guideways, and standardized linear scales on all axes.
- Possession of 50 years of accumulated manual scraping technology and precise assembly capabilities. Stability and precision machining enabled by heat-treated strong mechanical bed and column structures, INA steel ways, and INA roller-equipped saddles.Possession of 50 years of accumulated manual scraping technology and precise assembly capabilities. Stability and precision machining enabled by heat-treated strong mechanical bed and column structures, INA steel ways, and INA roller-equipped saddles.
- Capacity for custom manufacturing and supply of large machine tools to meet specific customer needs. A philosophy of dedication to quality improvement, respecting customer requirements.Capacity for custom manufacturing and supply of large machine tools to meet specific customer needs. A philosophy of dedication to quality improvement, respecting customer requirements.
- Successful experience in penetrating overseas markets through the expansion of its global business network. An export-oriented company with 50-60% of its total production exported overseas.Successful experience in penetrating overseas markets through the expansion of its global business network. An export-oriented company with 50-60% of its total production exported overseas.
- Precision machining in the die-casting industryPrecision machining in the die-casting industry
- Precision machining in the mold industryPrecision machining in the mold industry
- Manufacturing and machining of aerospace structuresManufacturing and machining of aerospace structures
- Machining of general small, medium, and large workpiecesMachining of general small, medium, and large workpieces
- Machining of welded structures and castingsMachining of welded structures and castings
- Machining of large valves and other heavy-duty componentsMachining of large valves and other heavy-duty components
- ChinaChina
- Germany, Italy, SpainGermany, Italy, Spain
- United StatesUnited States
- CE Mark certification obtained (1996)CE Mark certification obtained (1996)
- ISO9001 certification obtained (2003)ISO9001 certification obtained (2003)
- Possession of core technical capabilities related to universal head development. Development of 2.5°x2.5° and 1°x1° Orthogonal Heads. Development of 0.001°x0.001° Universal Heads S5, S6.Possession of core technical capabilities related to universal head development. Development of 2.5°x2.5° and 1°x1° Orthogonal Heads. Development of 0.001°x0.001° Universal Heads S5, S6.
- Manual scraping technology and precise assembly capabilities.Manual scraping technology and precise assembly capabilities.
