Manufacturer
JAC COUPLING
Brand
-
SKU
54757
Product Name
Muff Coupling
Model Name
J-M25, J-M30, J-M35, J-M40, J-M45, J-M50, J-M55, J-M60, J-M65, J-M70, J-M75, J-M80, J-M85, J-M90, J-M95, J-M100, J-M110, J-M120
Size
-
Weight
-
Product Details
|
 |
Muff coupling Dimensions
|
size
|
bore
ΦD (H8) (mm) |
A
|
L
|
KEY WAY
|
E
|
BOLT
|
torque
(kgf.m) |
weight
(kg) |
||
|
B (js9)
|
C
|
key (b x h)
|
||||||||
|
J-M25
|
Φ25
|
Φ50
|
88
|
7
|
28
|
7x7
|
1.6
|
4-M6x30L
|
22
|
1
|
|
J-M30
|
Φ30
|
Φ60
|
105
|
7
|
33
|
7x7
|
1.6
|
4-M6x30L
|
30
|
1.5
|
|
J-M35
|
Φ35
|
Φ70
|
120
|
10
|
38.5
|
10x8
|
1.6
|
4-M8x35L
|
40
|
2.5
|
|
J-M40
|
Φ40
|
Φ80
|
140
|
10
|
43.5
|
10x8
|
1.6
|
6-M10x40L
|
55
|
3.9
|
|
J-M45
|
Φ45
|
Φ90
|
160
|
12
|
48.5
|
12x8
|
1.6
|
6-M10x45L
|
70
|
5.6
|
|
J-M50
|
Φ50
|
Φ100
|
176
|
12
|
53.5
|
12x8
|
2
|
6-M10x45L
|
95
|
7.2
|
|
J-M55
|
Φ55
|
Φ110
|
180
|
15
|
60
|
15x10
|
2
|
6-M10x45L
|
120
|
9.6
|
|
J-M60
|
Φ60
|
Φ120
|
184
|
15
|
65
|
15x10
|
2
|
6-M12x50L
|
150
|
11.6
|
|
J-M65
|
Φ65
|
Φ130
|
200
|
18
|
69.4
|
18x11
|
2.5
|
6-M12x50L
|
205
|
12.2
|
|
J-M70
|
Φ70
|
Φ140
|
214
|
18
|
74.4
|
18x11
|
2.5
|
6-M14x55L
|
245
|
15.7
|
|
J-M75
|
Φ75
|
Φ150
|
240
|
20
|
79.9
|
20x12
|
2.5
|
6-M14x55L
|
300
|
20.6
|
|
J-M80
|
Φ80
|
Φ160
|
264
|
20
|
85.9
|
20x12
|
2.5
|
6-M16x55L
|
360
|
21.5
|
|
J-M85
|
Φ85
|
Φ178
|
278
|
24
|
93
|
24x16
|
2.5
|
6-M16x55L
|
435
|
27.4
|
|
J-M90
|
Φ90
|
Φ180
|
292
|
24
|
98
|
24x16
|
3
|
6-M18x75L
|
530
|
30
|
|
J-M95
|
Φ95
|
Φ190
|
300
|
24
|
103
|
24x16
|
3
|
6-M18x75L
|
615
|
37.5
|
|
J-M100
|
Φ100
|
Φ200
|
320
|
28
|
106.4
|
28x16
|
3
|
6-M18x75L
|
690
|
42
|
|
J-M110
|
Φ110
|
Φ210
|
360
|
28
|
116.4
|
28x16
|
3
|
6-M18x75L
|
900
|
56
|
|
J-M120
|
Φ120
|
Φ279
|
410
|
32
|
127.4
|
32x18
|
3
|
8-M20x75L
|
1100
|
85
|
More products
Disk CouplingA-type, E-type, G-type, A3-type, A4-type, AX-type, E4-type, G4-type, Power Lock(Span Ring) type, NN-hub, NZ-hun, 응용형 축연장 type, A3-05-11T, A3-10-11T, A3-05-16T, A3-10-16T, A3-15-16T, A3-20-16T, A3-25-16T

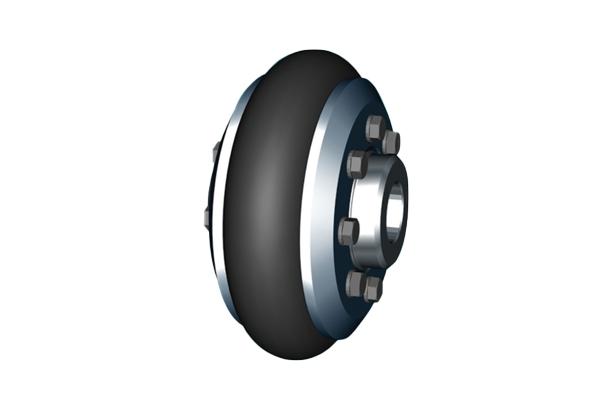

Tire CouplingJAC-100, JAC-120, JAC-140, JAC-160, JAC-185, JAC-220, JAC-265, JAC-340, JAC-445, JAC-550, JAC-700
Wind Turbine CouplingJWP Type, JWPT Type, JWP JWP, JWP JWPT, 0.75MW, 750KW, 1.5MW, 2MW, 3MW, 5.5MW
Elastomeric CouplingJ2, J3, J4, J5, J10, J20, J30, J40, J50, J60, J70
Brake Drum CouplingBW160, BW200, BW250, BW315, BW355, BW400, BW450, BW500, BW560, BW762, BWC160, BWC200, BWC250S, BWC250L, BWC315, BWC355, BWC400, BWC450, BWC500, BWC560, BWC762
Wire Drum CouplingWD345, WD433, WD455, WD470, D0.25, D0.5, D0.75, D1, D1.3, D1.6, D2, D3, D4, D6, D10, D15, D26, D34, D42, D62

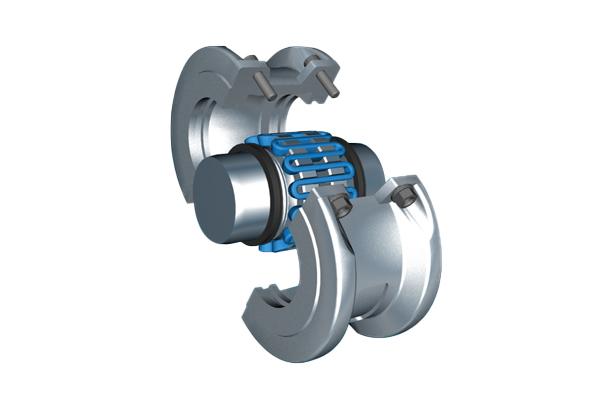

Grid CouplingSH-type, SV-type, SAS-type, SFS-type, SBW-type
Gear CouplingSSM 112, SSM 125, SSM 140, SSM 160, SSM 180, SSM 200, SSM 224, SSM 250, SSM 280, SSM 315, SSM 355, SSM 400, CCM 450, CCM 500, CCM 560, CCM 630, CCM 710, CCM 800, CCM 900, CCM 1000, CCM 1120, CCM 1250, SEM 112, SEM 125, SEM 140, SEM 160, SEM 180, SEM 200, SEM 224, SEM 250, SEM 280, SEM 315, SEM 355, SEM 400, CEM 450, CEM 500, CEM 560, CEM 630, CEM 710, CEM 800, CEM 900, CEM 1000, CEM 1120, CEM 1250

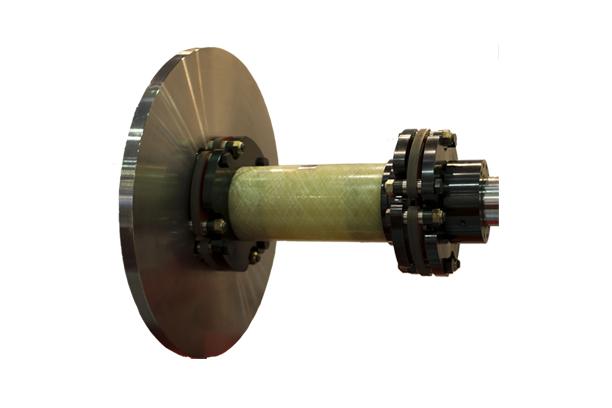

Composite CouplingJCT-133, JCT-152, JCT-171, JCT-229
