Special Features
โถ Un-winder
The unwinding part controls BACK TENSION by AC SERVO MOTOR calculating the change amount of unwinding tension. SHAFTLESS TYPE with FRAM movement while CORE CHUCKING is fixed by air pressing.
โถ Slitting Unit
-Slitting Type: combined use of RAZOR and SHEAR KNIFE
-Operating Type: Interlocking Flat Belt and Transport Roll
โถ Re-winder
An independent sensor and winding system driven by Sectional Drive type of AC serve motors (Shaft-less Type)
โถ Touch Roll Unit
-Lay-on touch type - Automatic surface pressure control system controls the pressure of the cylinder depending on the value of surface pressure control through a converter
โถ Control Panel
- Main Panel: machine-mounted
- Control Power : AC 220V x 60Hz
โถ Suitable for all-purpose laminating
โถ Especially, available for Glue-less Laminating that can not use adhesive layer.
โถ Use to laminate films of different materials in between
Special Features
โถ Able to laminate different films without adhesive layer in between by the Know-how & experience of GMP
โถ Temperature control within +/-1 ยฐ C applying Electro-Magnetic Induction Heating System
โถ Ultra heat resistant rubber rollers manufactured by GMP are available to use continuously up to 170 ยฐ C
โถ Easily control the thickness of substrates with precise roller gap adjustment device
โถ Use for basic film embossing job
โถ Use for process needing adhesion job between different films and embossing job in parallel
โถ Use for precise heating treatment to enhance the characteristics of films
Special Features
โถ Control temperature within +/-1โ applying Electro-Magnetic Induction Heating System
โถ Ultra heat resistant rubber rollers manufactured by GMP are available to use continuously up to 170โ
โถ Easily control the thickness of substrates with the precise roller gap adjustment device
โถ Corona treatment device for enhancing adhesive strength is installed
โถ Web Cleaner for particle management of optical films is installed
โถ Use for High pressure, high-precision thermal imprinting
โถ Use for High pressure laminating
Special Features
โถ Up to 6 tons of high pressure Imprinting and laminating device
โถ Precisely control the pressure by using Servo-controlled hydraulic pressure device
โถ Precisely control the thickness of substrate by manufacturing tolerance within 3ใ
โถ Available to use various films by diversely implementing Web Pass of basic films

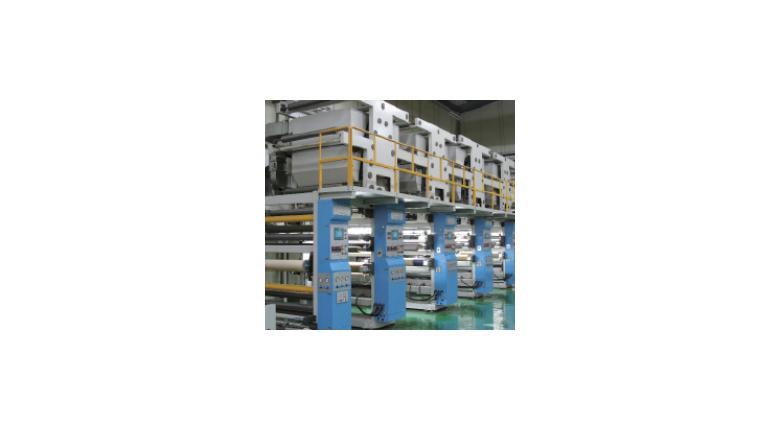

โถ Roll to Roll continuous production type high-precision printer for Printed Electronics
โถ RFID Antenna, Sensor, Chip-less Circuit
Special Features
โถ Retain conductivity in thin film by Gravure Offset printing method
โถ Influence of printing thickness is less in overlay printing due to printing ability under low pressure
โถ Best solution in printed electronics by precise overlay printing
โถ Conductive ink printing and insulating ink printing are available with single pass-multi print
โถ Excellent Drying efficiency by applying Zet nozzle on dry chamber
